With a footprint measuring just 18 x 33cm, the VA-One is conveniently compact for a valve amp – sufficiently small to sit comfortably on a desk, table or shelf. Yet it packs in a wealth of high-performance audio technology: a hi-res DAC (Digital-to-Analogue Converter) joins valve-based preamp and power amp circuits to deliver sumptuous sound quality from a multitude of playback devices – from smartphones and tablets, to PCs and Macs, to hi-fi source components.
“The VA-One might not be terribly big, but it is extremely clever.” ~ Hi-Fi Choice, October 2016
(Please note S Series loudspeakers sold seperately)
- Overview
- Specifications
- Reviews
- Related Products
Overview
Classic hi-fi for modern music lovers

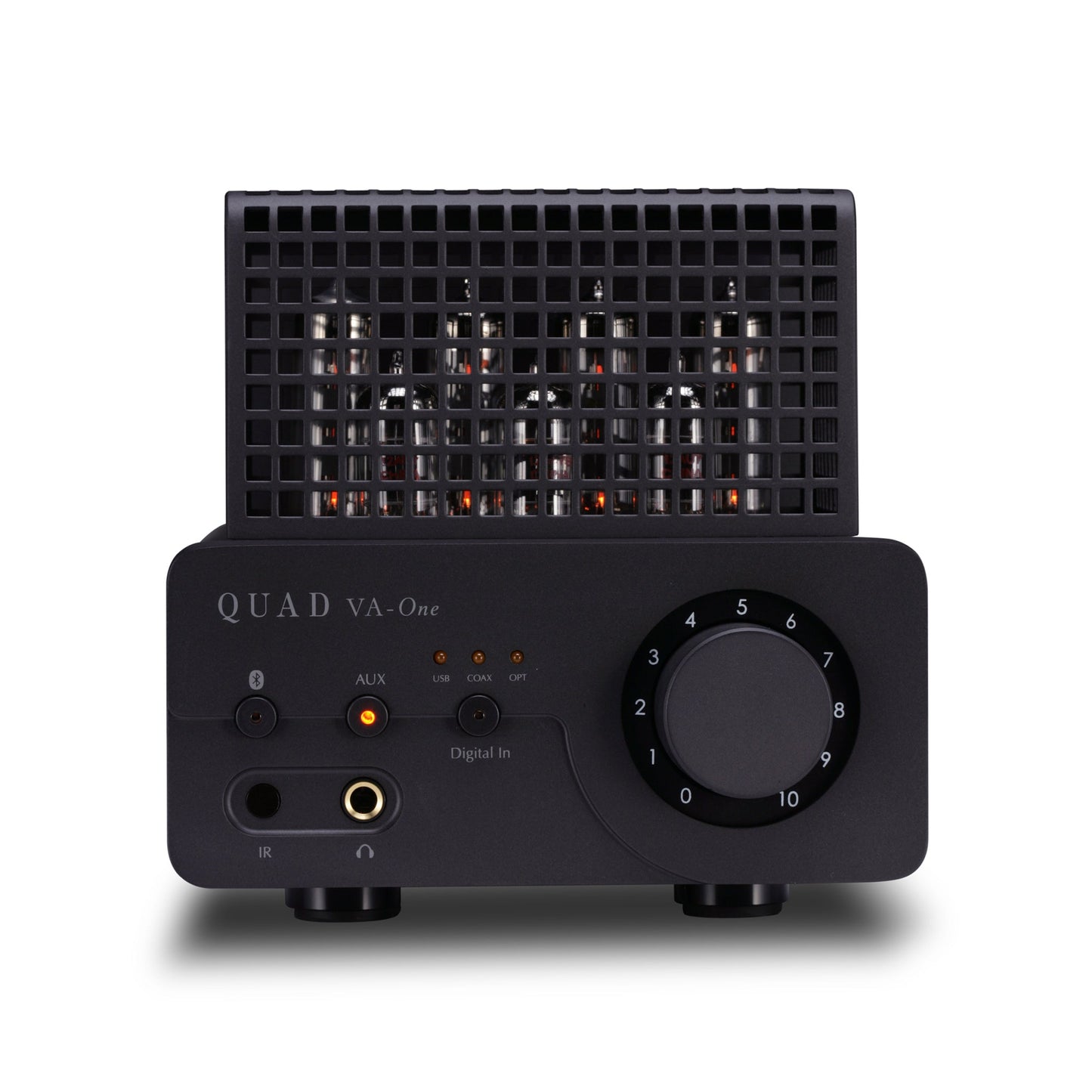

Build quality is impeccable both inside and out, as one expects of QUAD. Internal components have been painstakingly selected to ensure the VA-One maintains the company’s traditional dictum of “the closest approach to the original sound”, while external styling is classically QUAD, finished in traditional ‘Lancaster Grey’. The amp’s front panel sports a smooth-acting volume control incorporating a motorised potentiometer, allowing precise adjustment via the supplied remote control, together with a high-quality headphone output and controls for input selection and Bluetooth pairing.
It all adds up to the ideal compact amplifier for modern music lovers who crave the mellifluous sound quality and delicious retro appeal of valves, whilst listening to music from all manner of modern devices, like smartphones, tablets and computers.
Design
A combination of 7 pre and power-amp valves

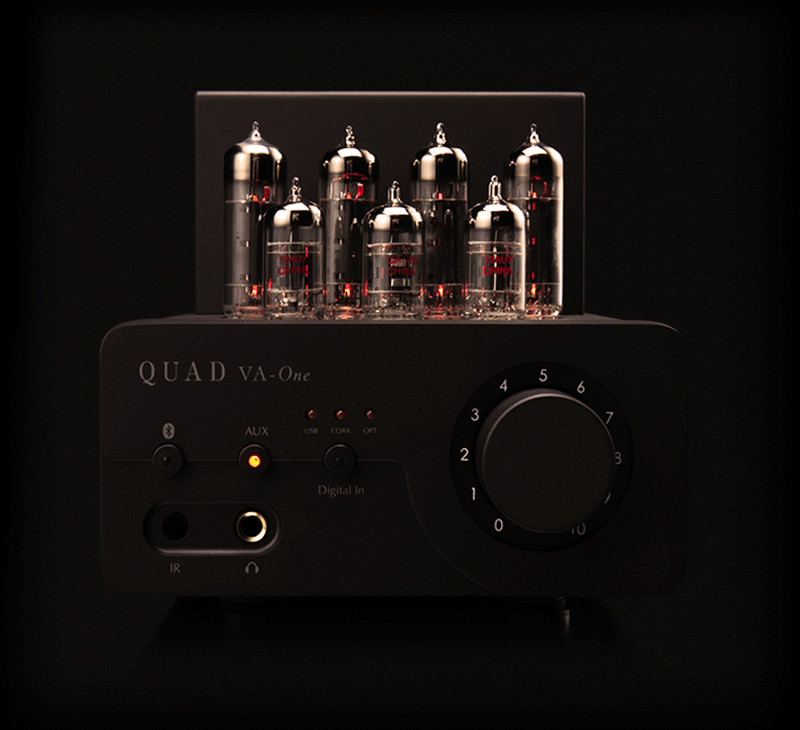

The VA-One boasts an impressive complement of valves for such a compact device (seven in all). The preamp section incorporates an ECC83 high-impedance triode, feeding an ECC82 twin triode driver and phase splitter stage. The output stage uses two EL84 pentodes per channel in a push-pull configuration, delivering 2x15W – sufficient power to drive efficient modern speakers to high volume levels, whilst maintaining the sumptuous sound quality derived from the amp’s valve-based topology.
As well as providing the fluid, immersive sonic performance associated with classic valve amplification, the VA-One delivers lashings of musical detail without the unwanted colouration often associated with inferior valve-based products, thanks to the highly specified output transformers.
Technology
Modern digital convenience, including USB and Bluetooth connectivity

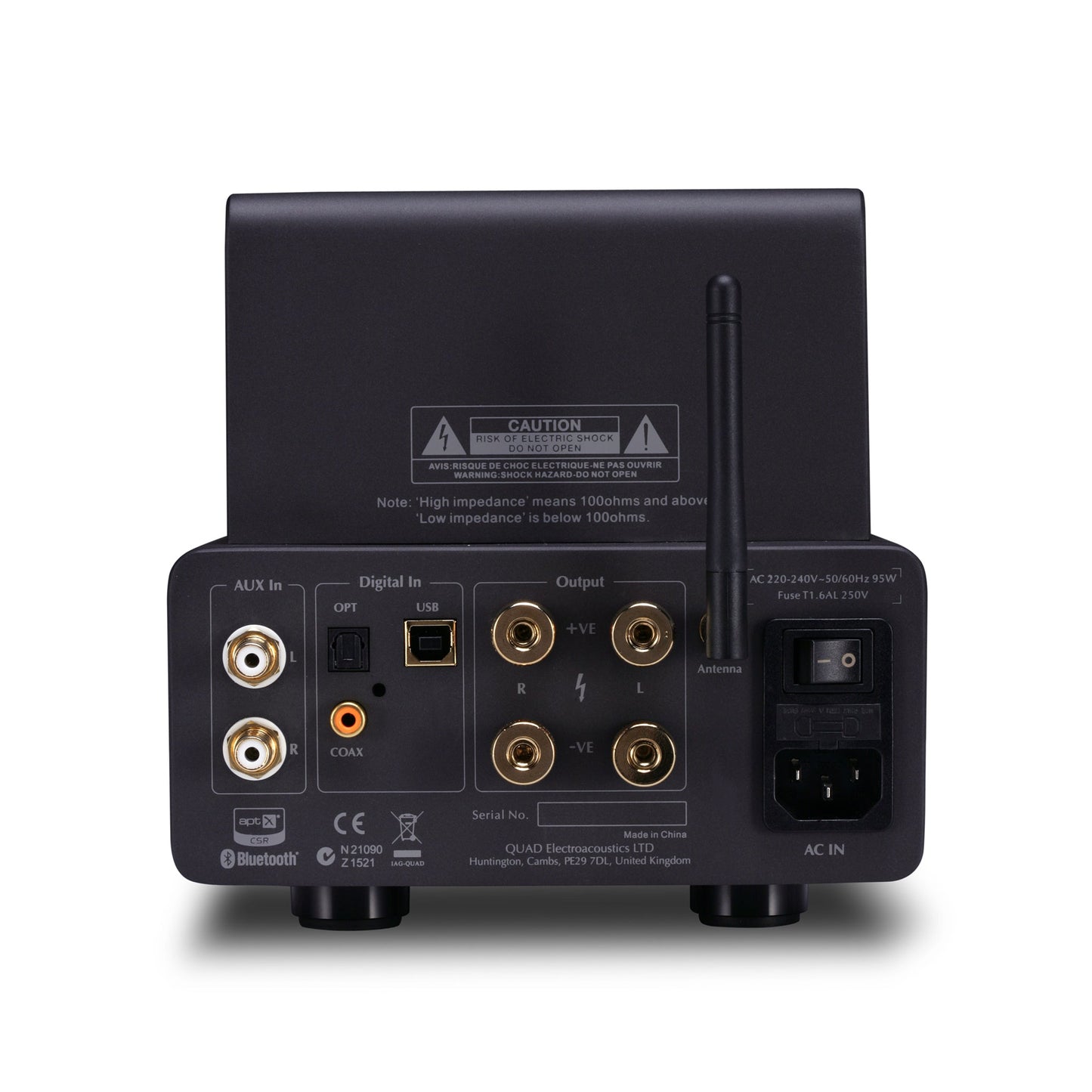

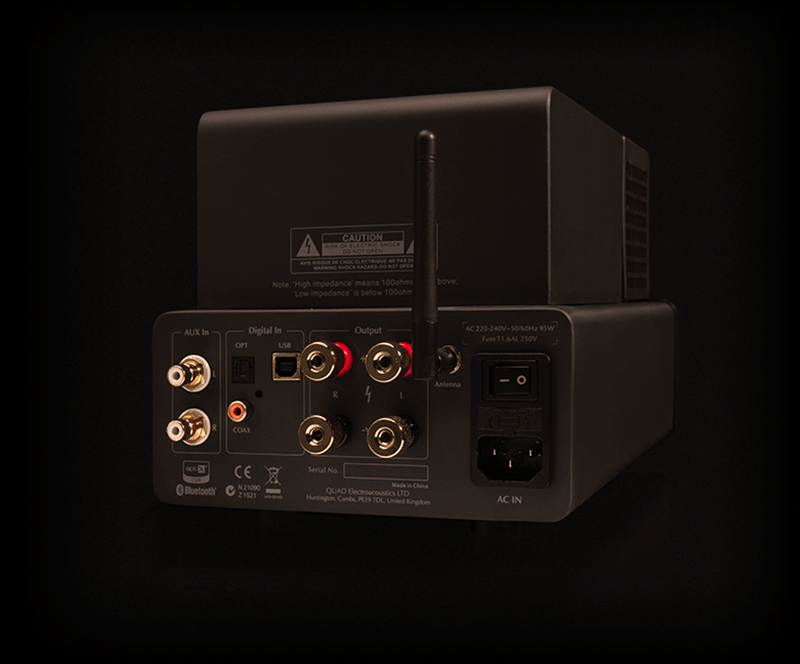

Three digital audio inputs – optical, coaxial and asynchronous USB – support data up to 24-bit/192kHz, and an RCA-phono input gives the option to connect an analogue source like a CD player or a turntable (when used with a suitable phono stage).
In addition, those who enjoy the freedom of wireless connectivity can pair smartphones, tablets and computers via Bluetooth, with support for the sonically superior aptX codec.
Specifications
| Model | VA-One |
| General description | Integrated amplifier |
| Rated power output | 2 x 15W RMS (6½) 2 x 12W RMS (8½ / 4½) |
| Frequency Response | 20Hz - 50kHz (-3dB) |
| Total harmonic distortion | 0.50% |
| Signal-to-noise ration (S/N) | 90dB |
| Input Impedance | 50K½ |
| Inputs | 1 x RCA, 1 x OPT, 1 x COAX, 1 x USB B, Bluetooth (aptX) |
| Outputs | 1 x Speaker Terminal,1 x 6.3mm Jack Headpone |
| Valves | 1 x ECC83, 2 x ECC82, 4 x EL84EH |
| Net weight | 10.8kg |
| Outputs | 2 x 6.3mm Jack headphone socket, RCA Phono |
| Digital Resolution | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176kHz, 192kHz |
| Valves | 2 x 66SL7, 2 x 6SN7, 1 x EZ81 |
| Size (W x D x H) | 180mm x 284.5mm x 163.5mm |
| Net Weight | 7.5kg |
| Dimensions (H x W x D) | 90 x 220 x 300mm |
