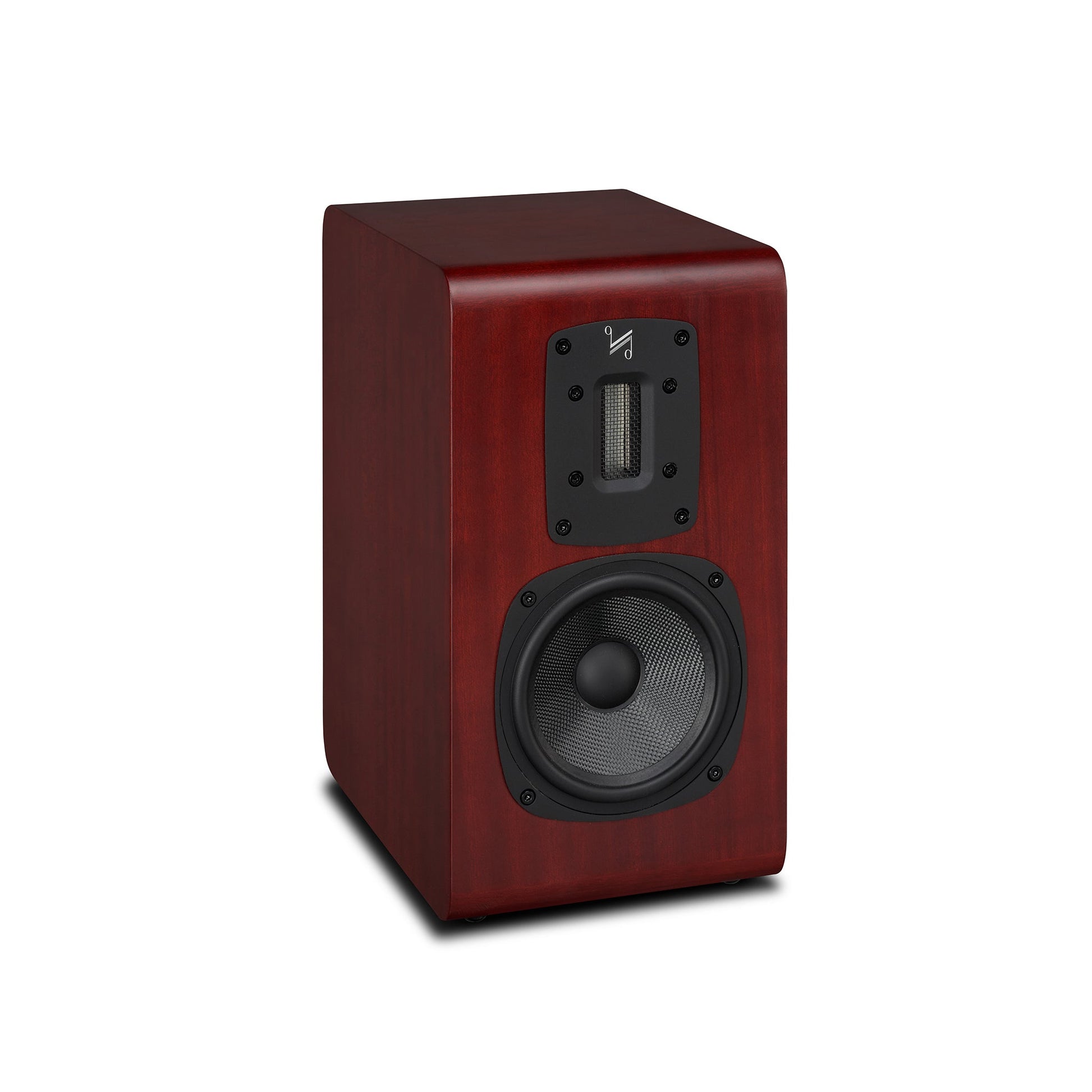

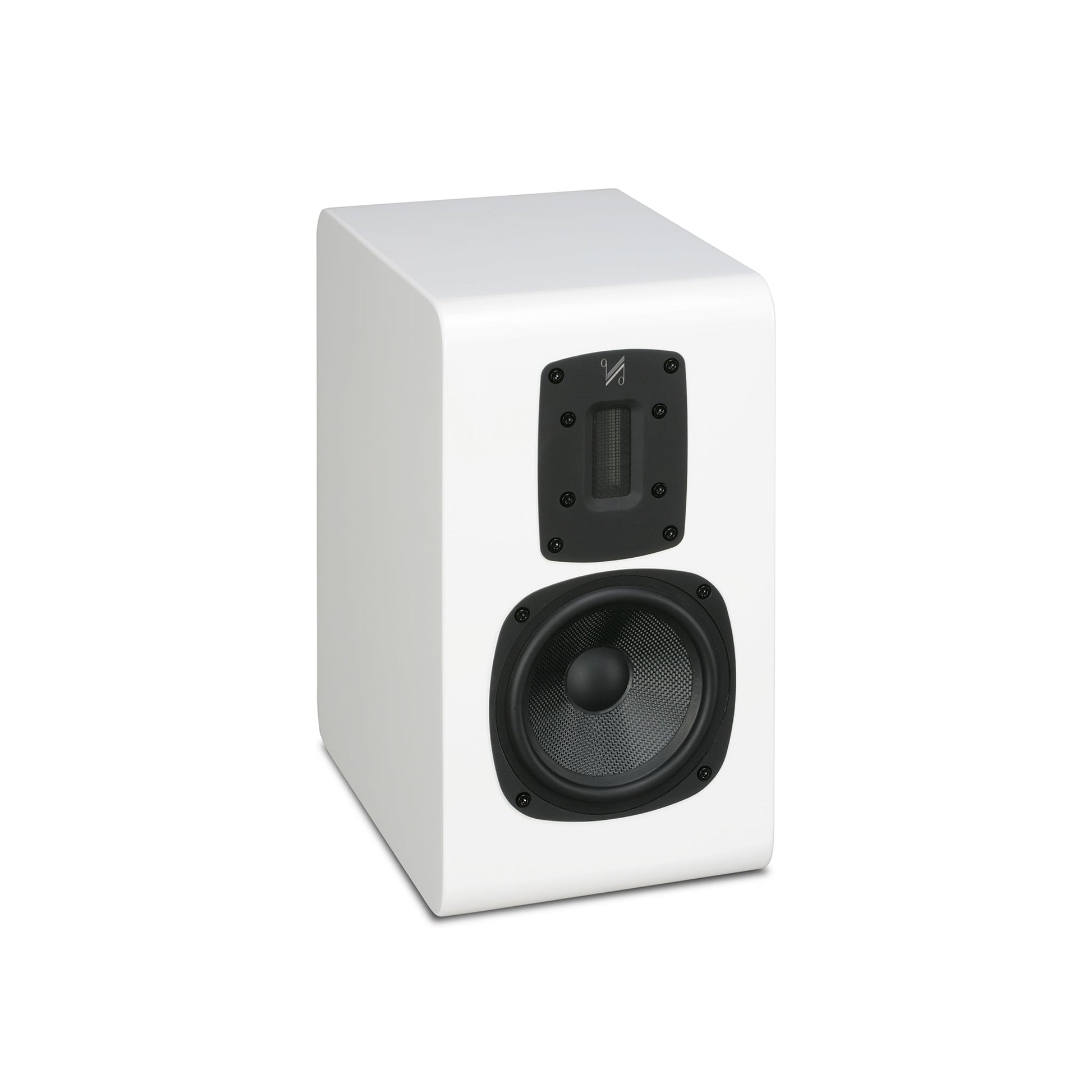

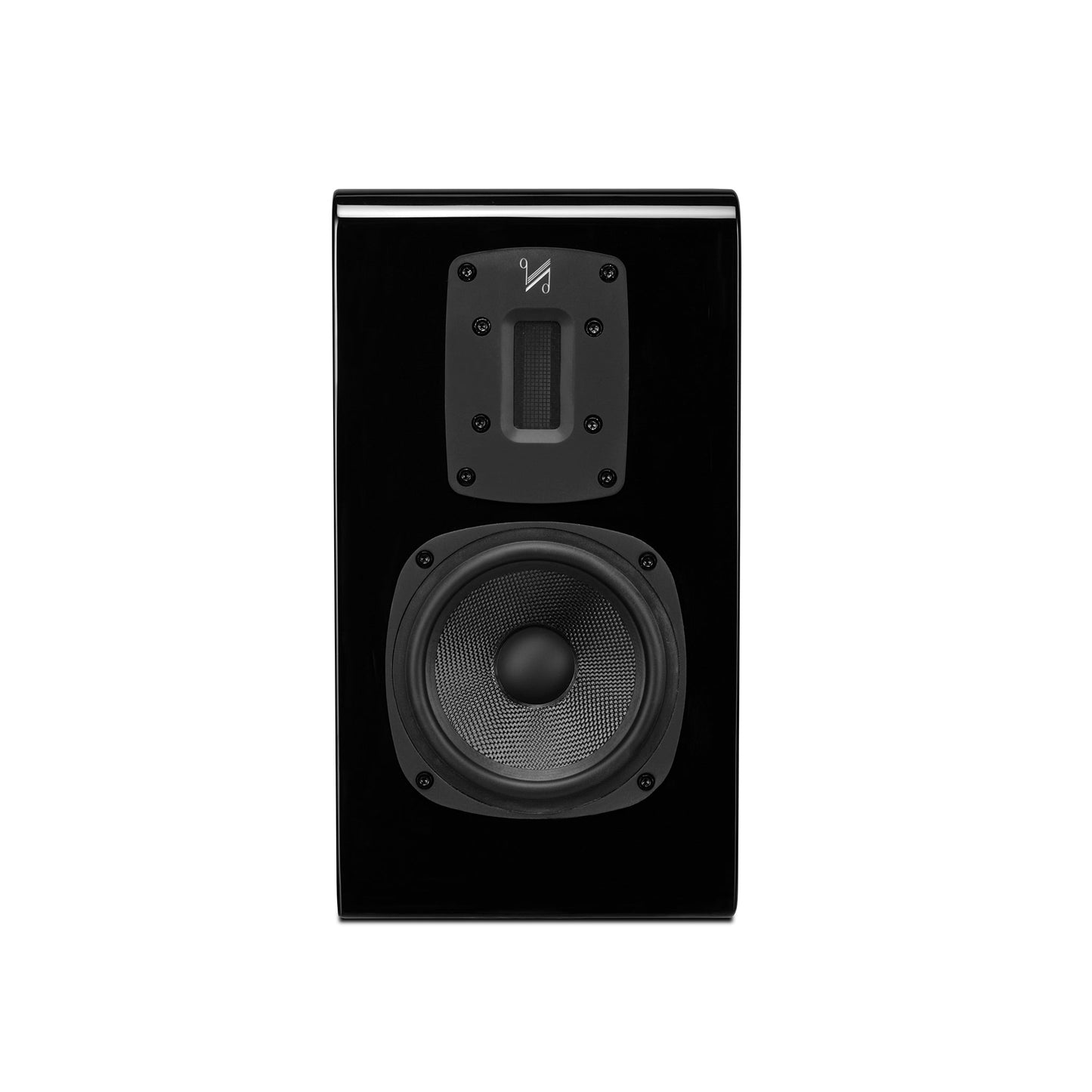

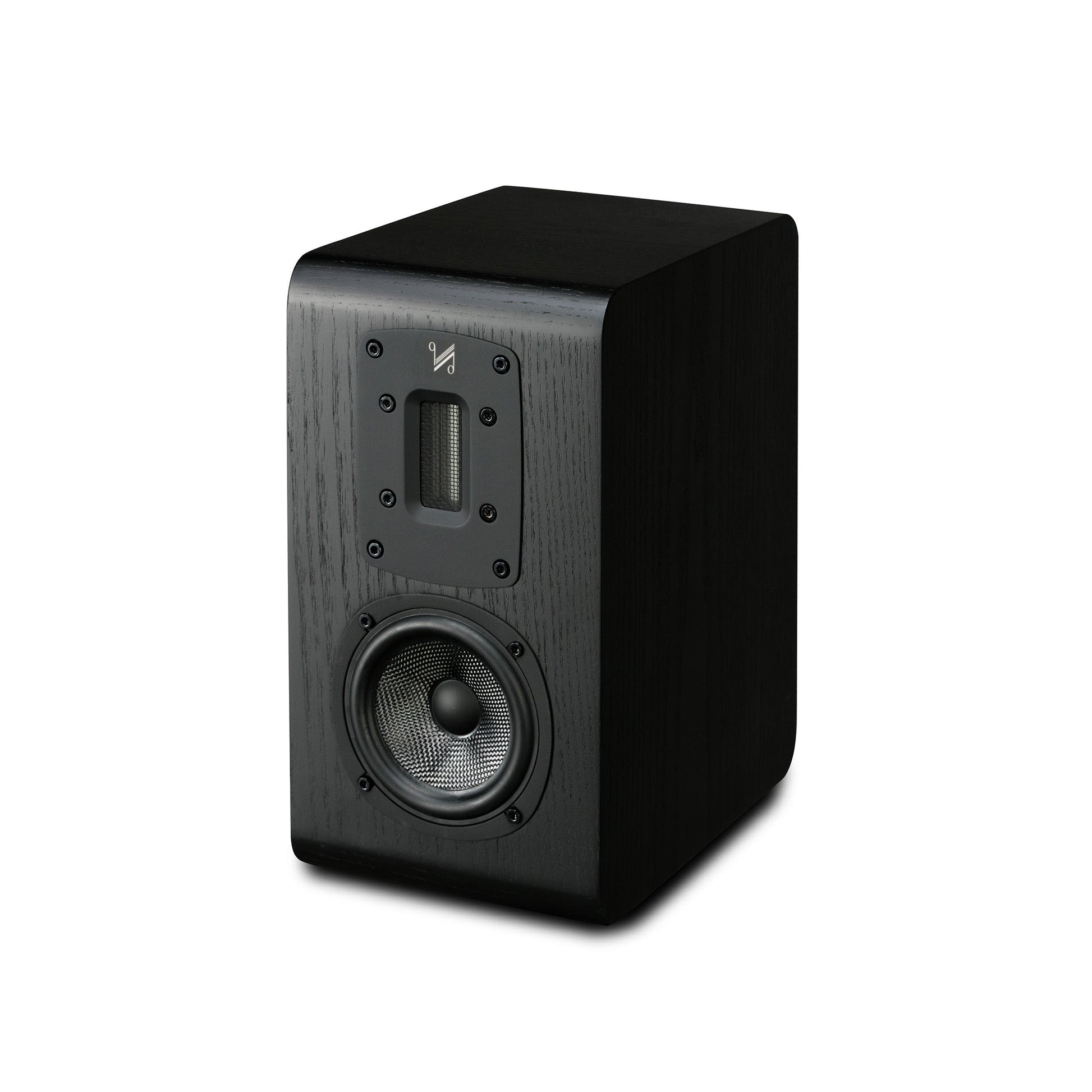

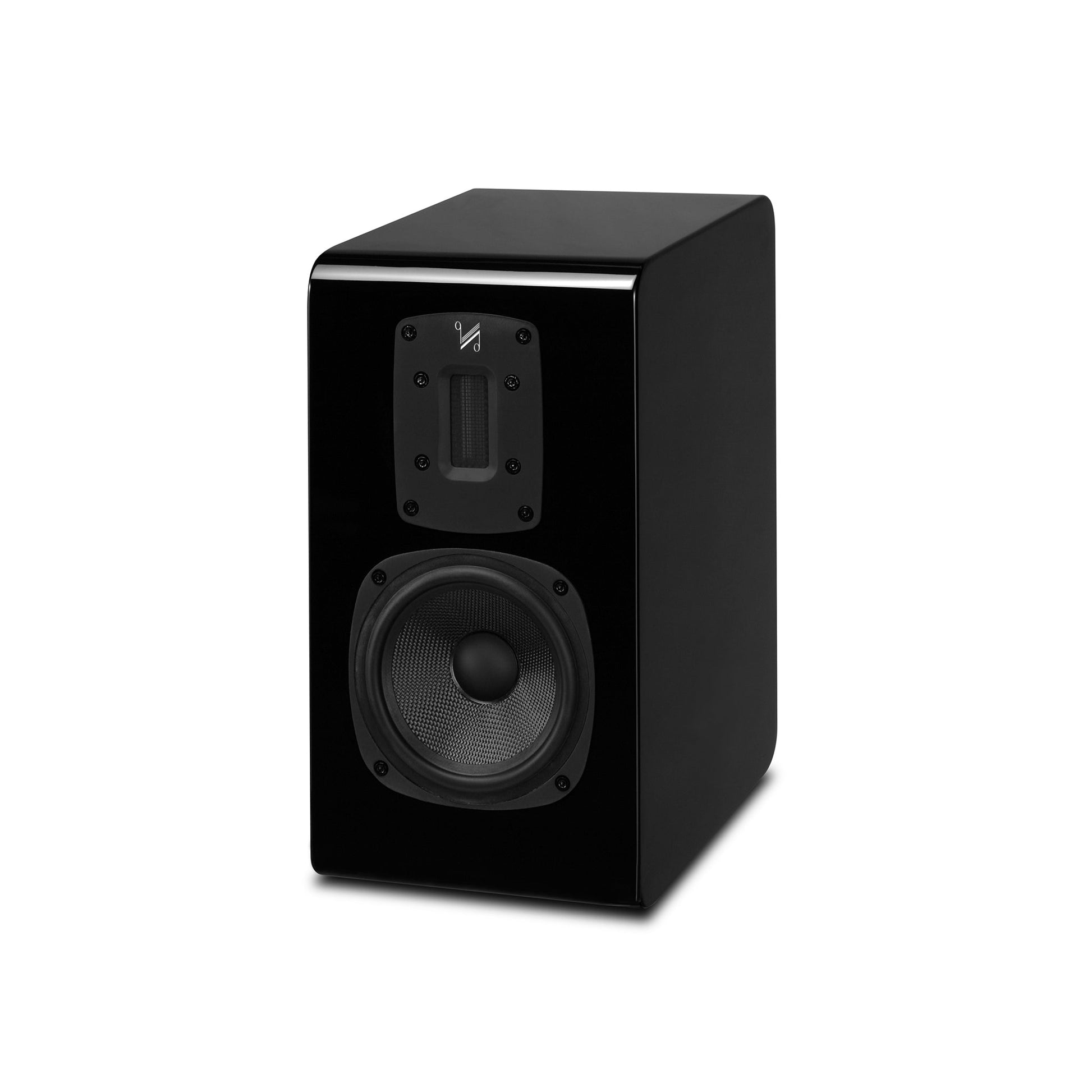

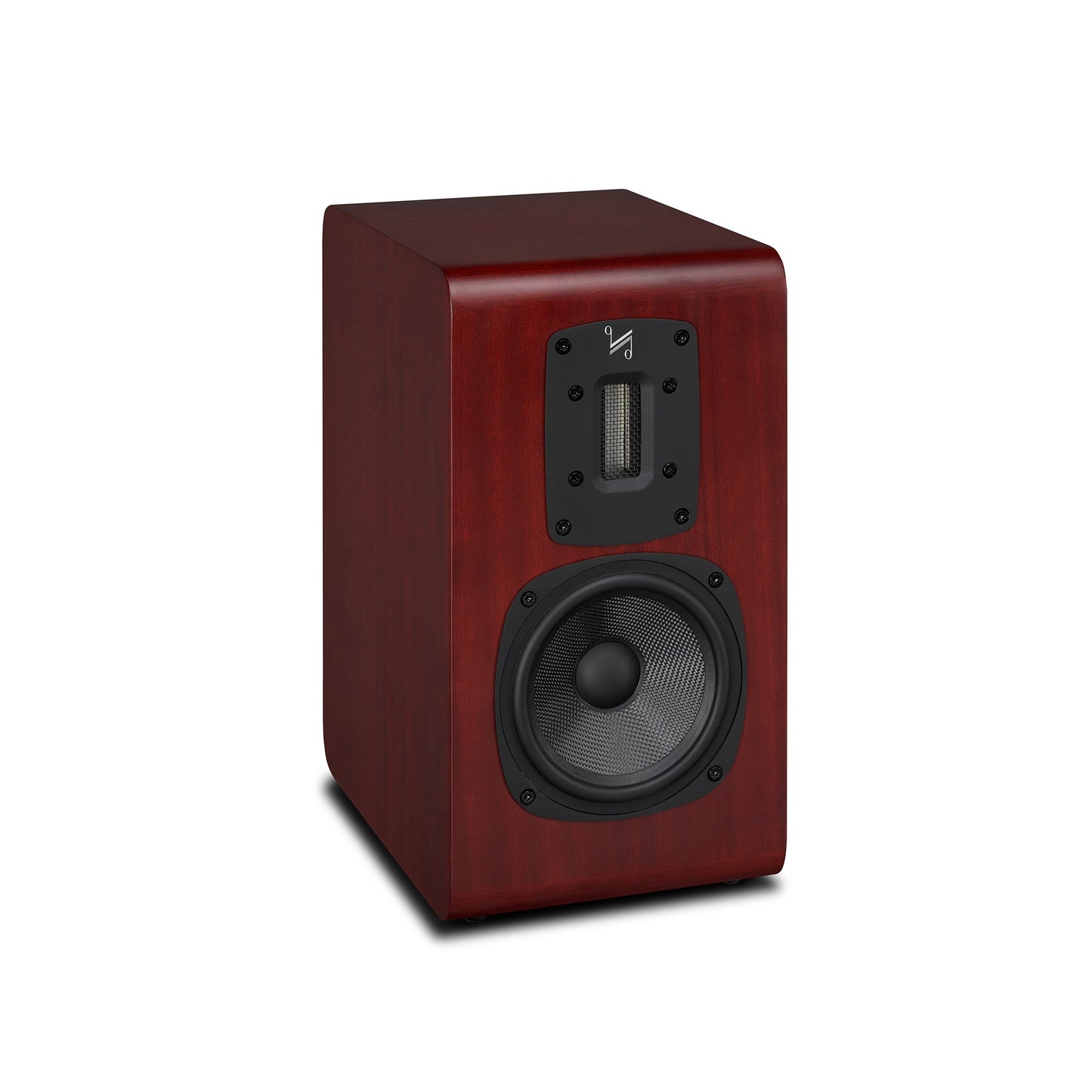

S-2

S-2

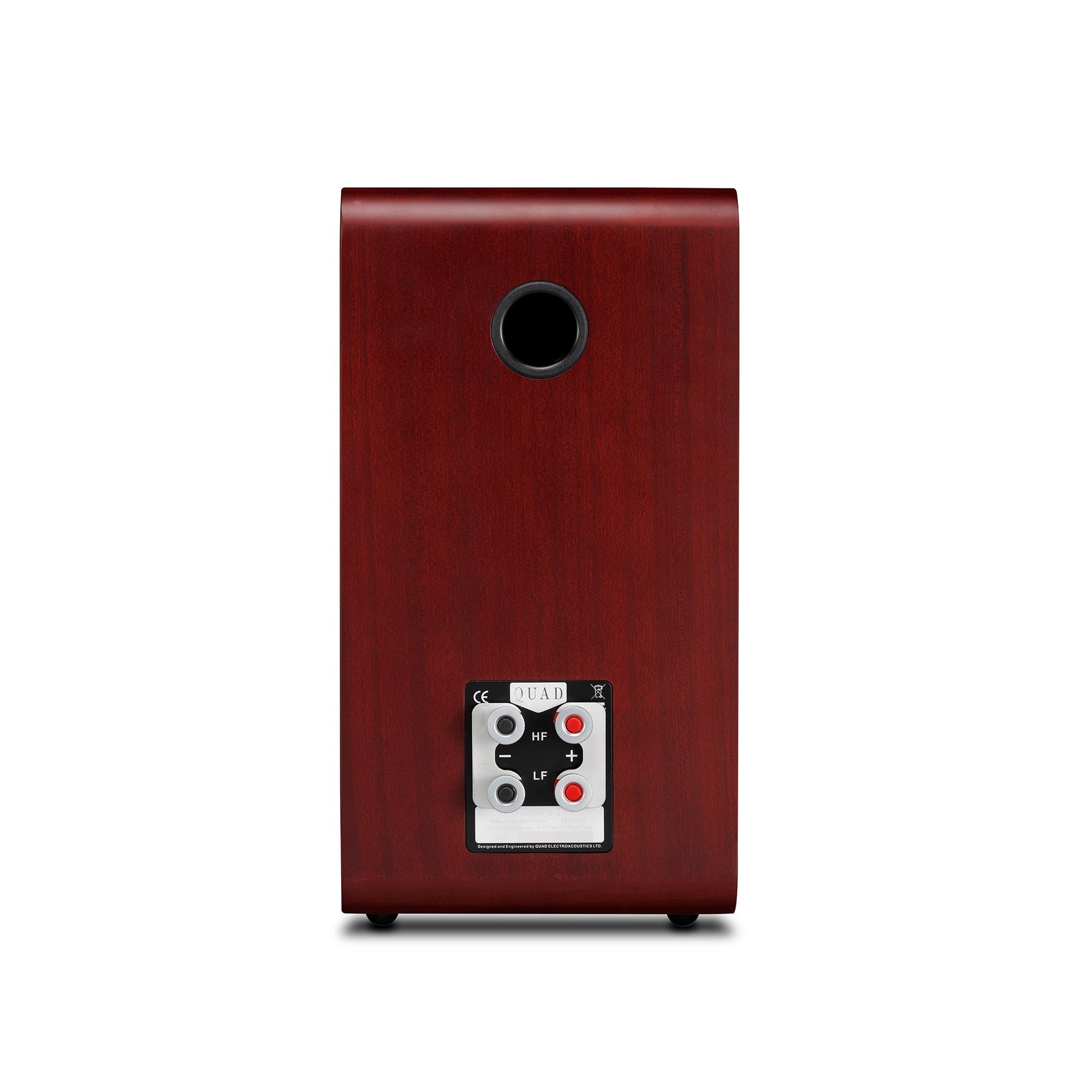

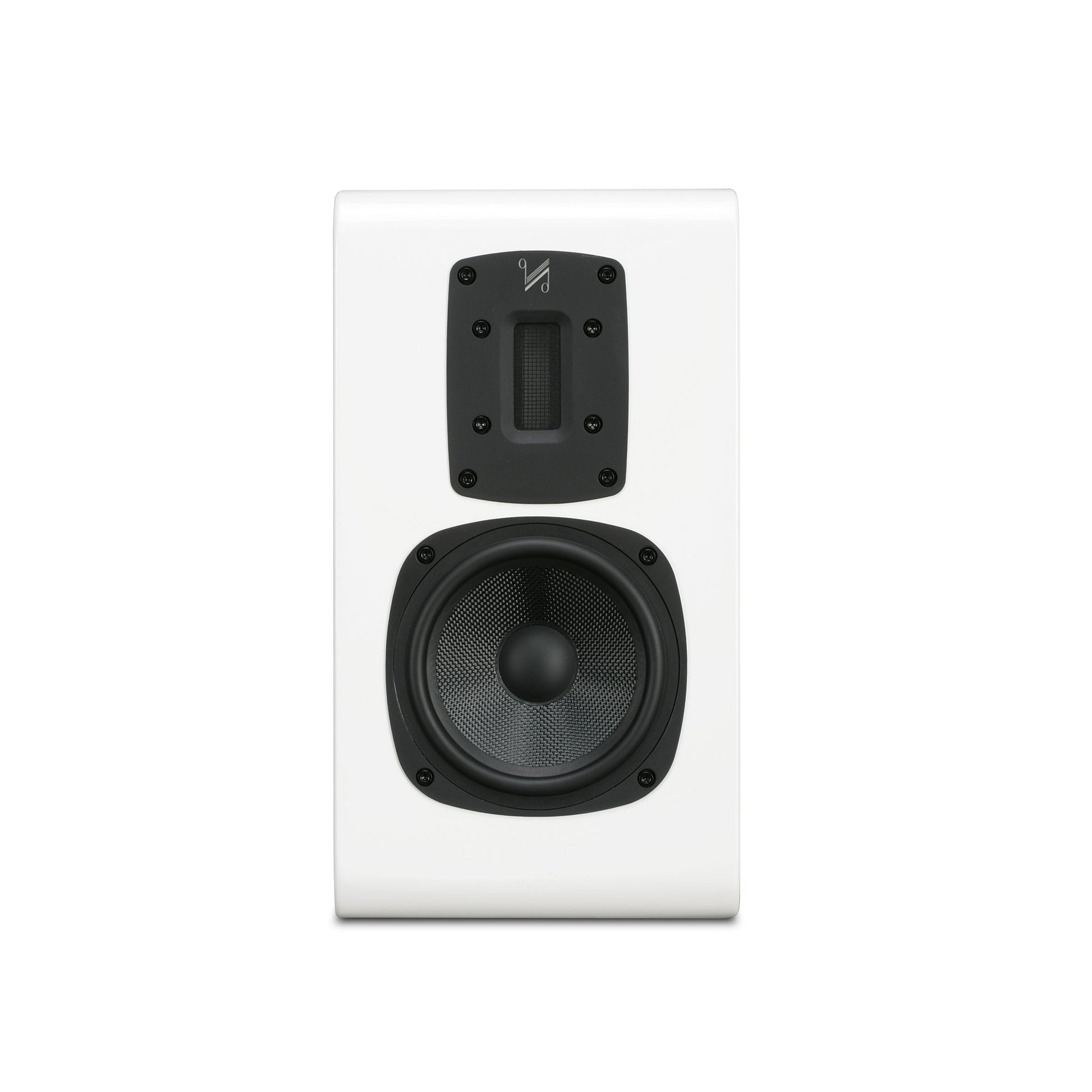

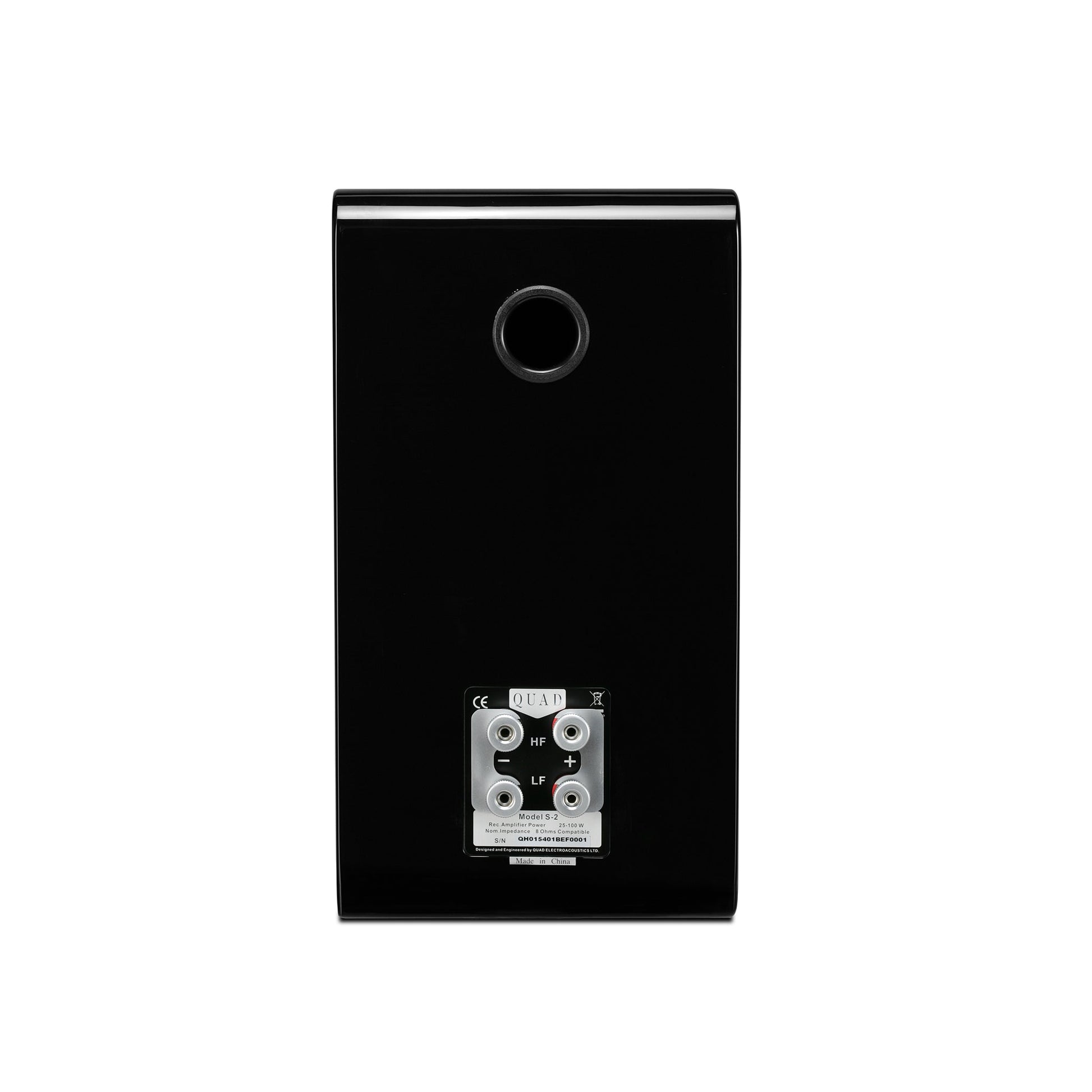

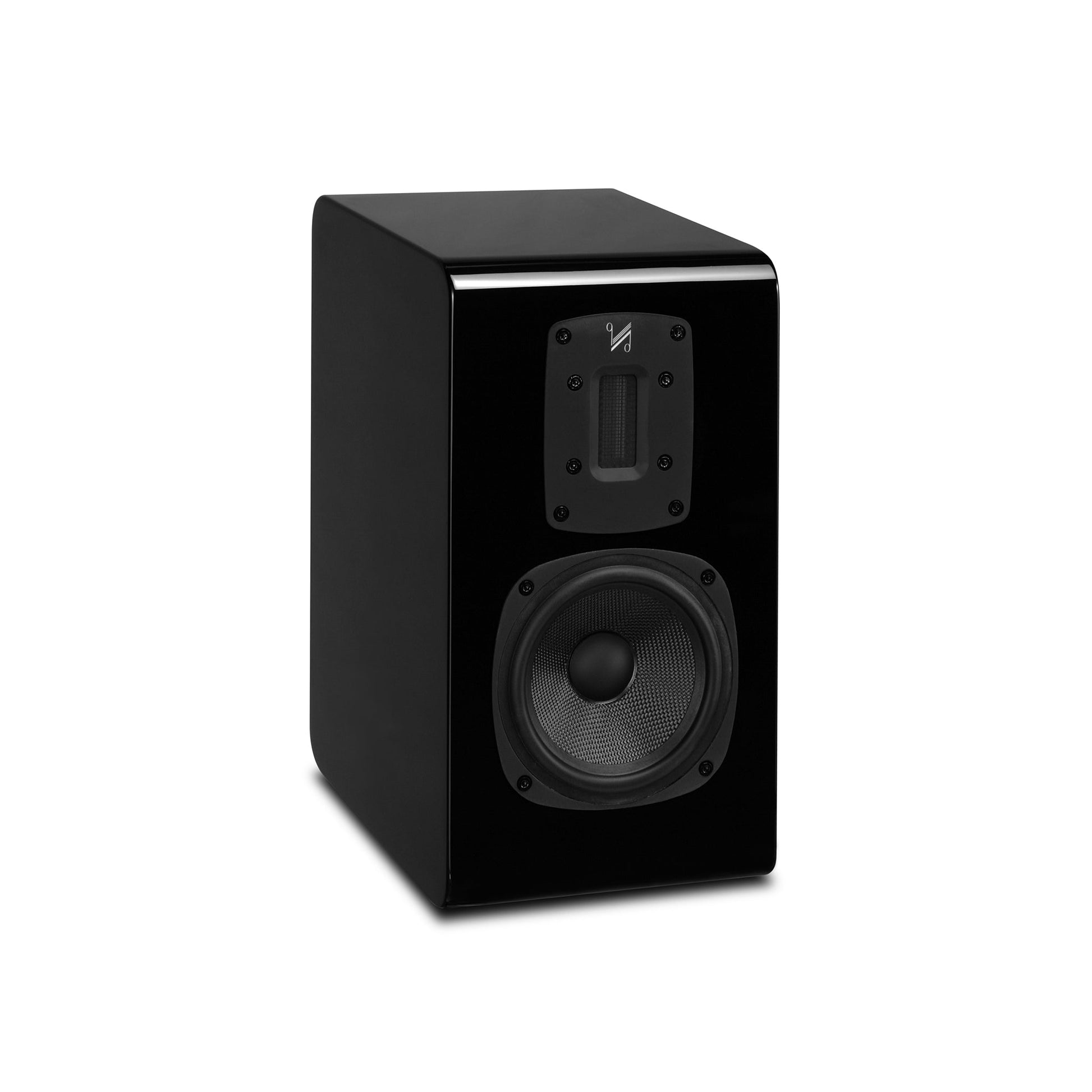

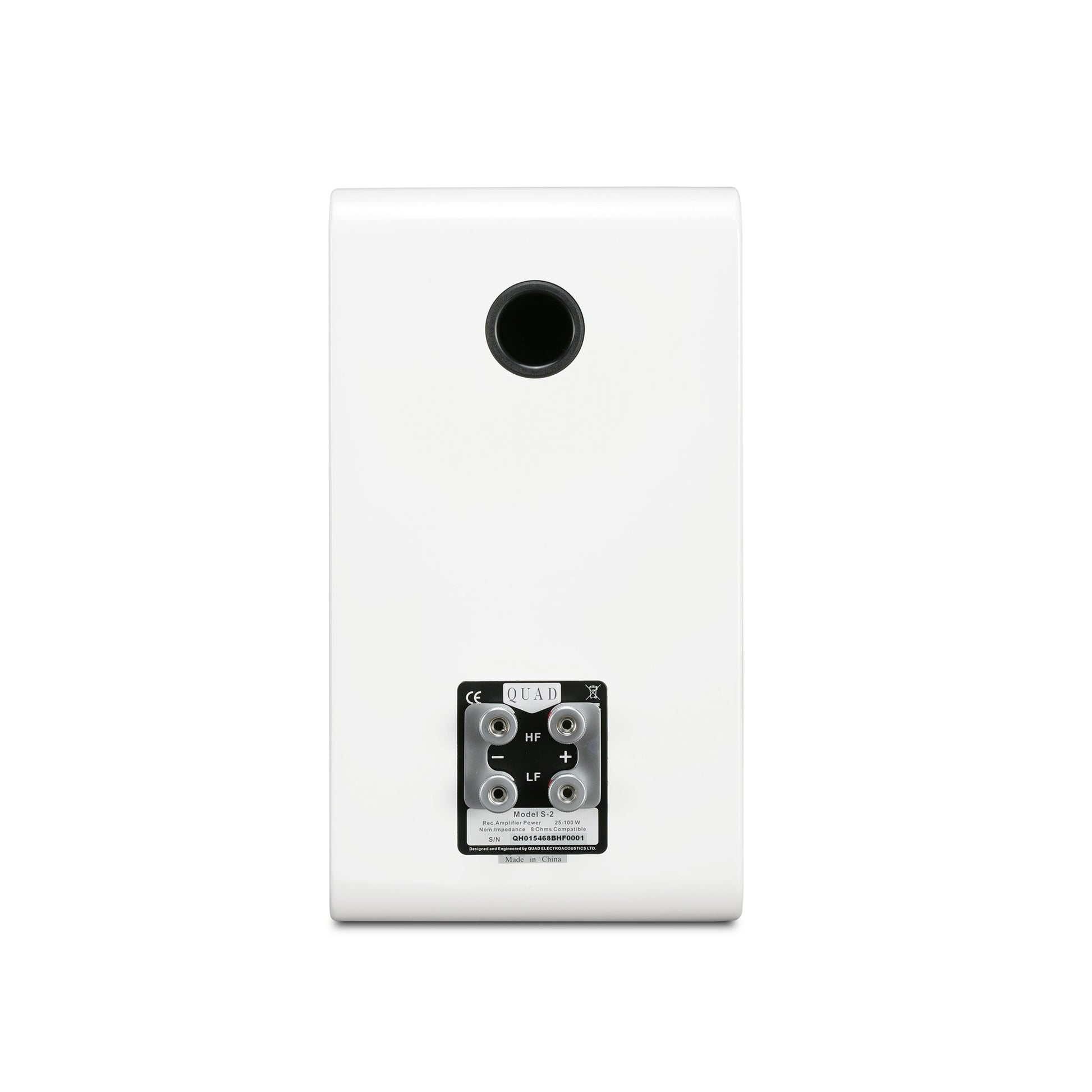

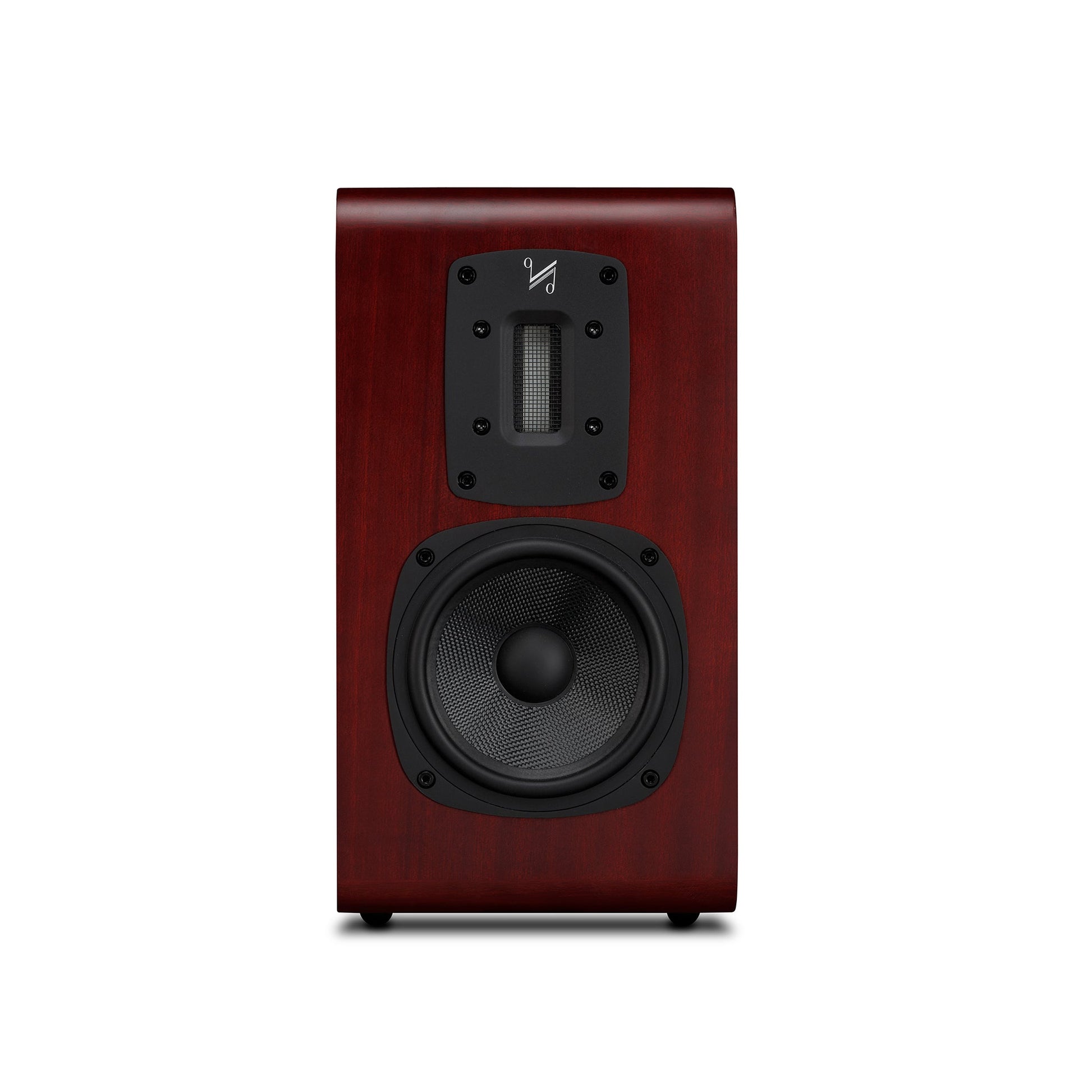

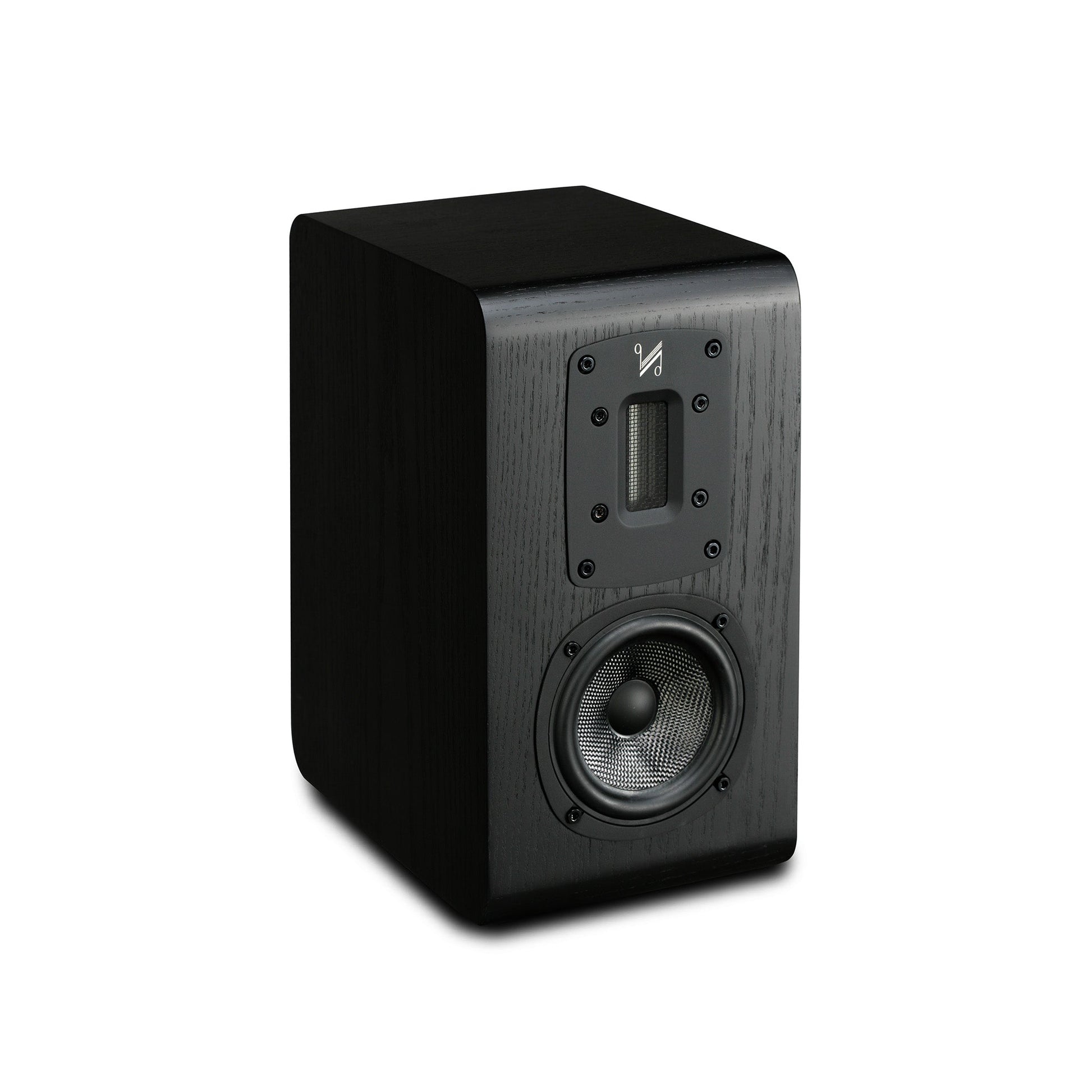

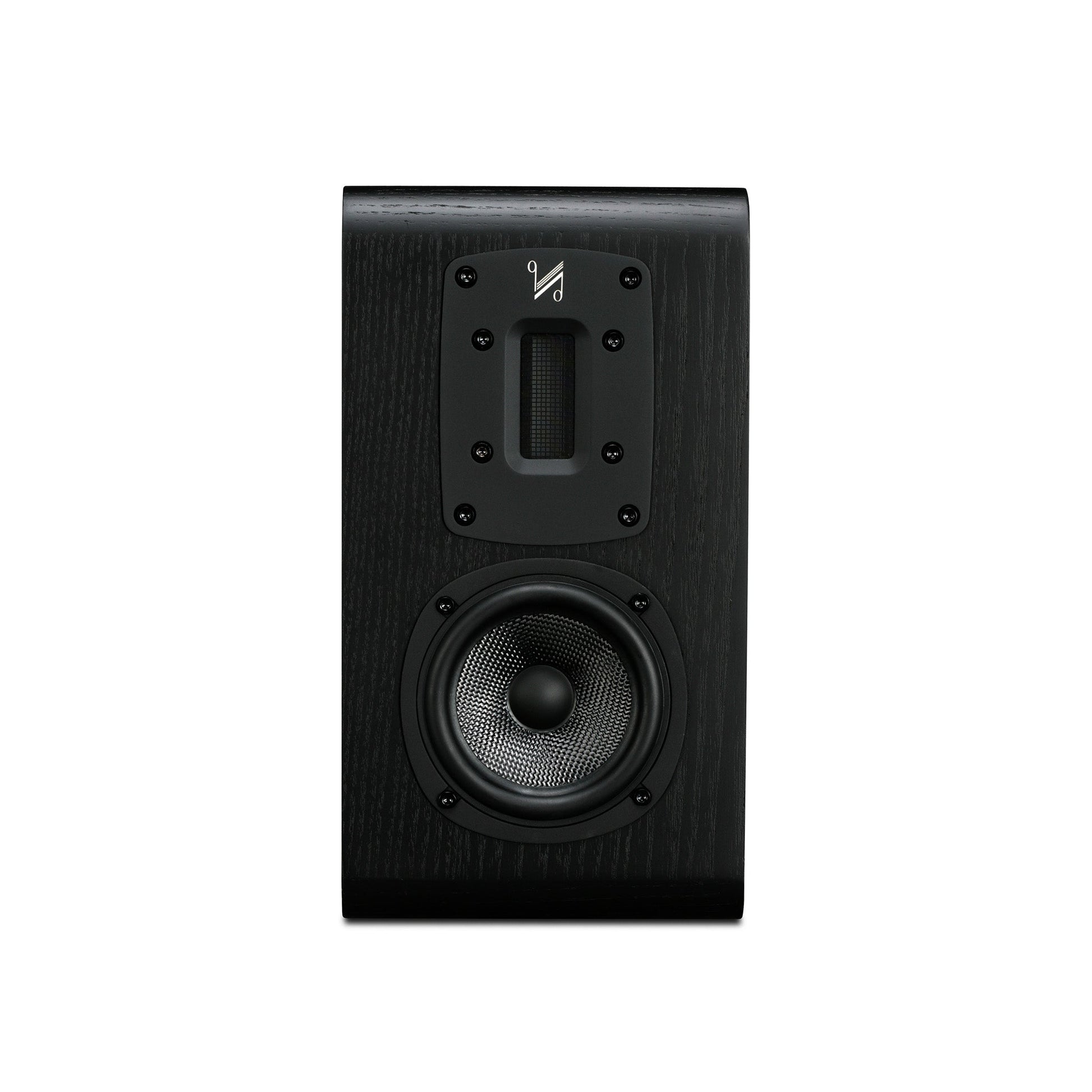

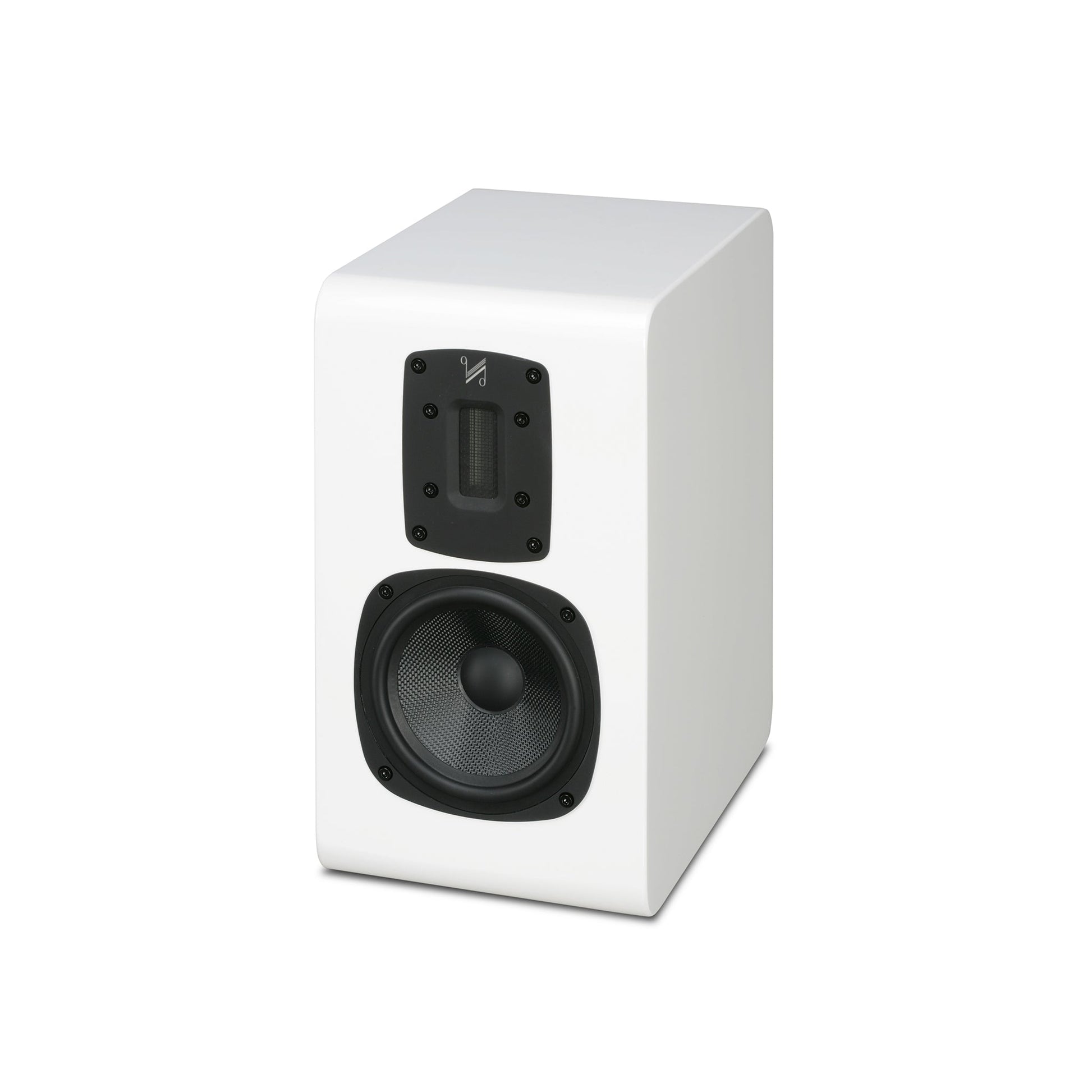

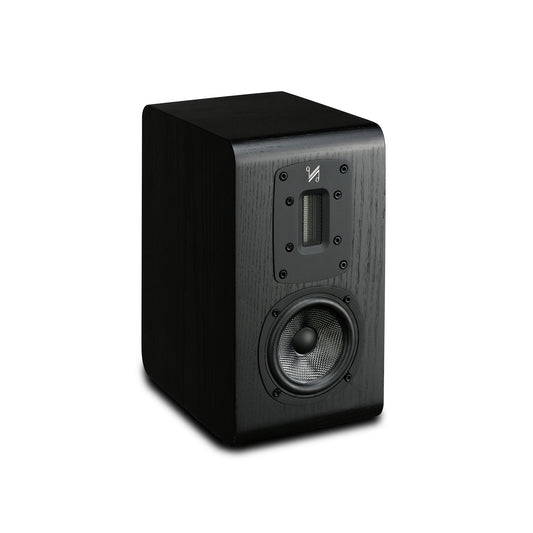

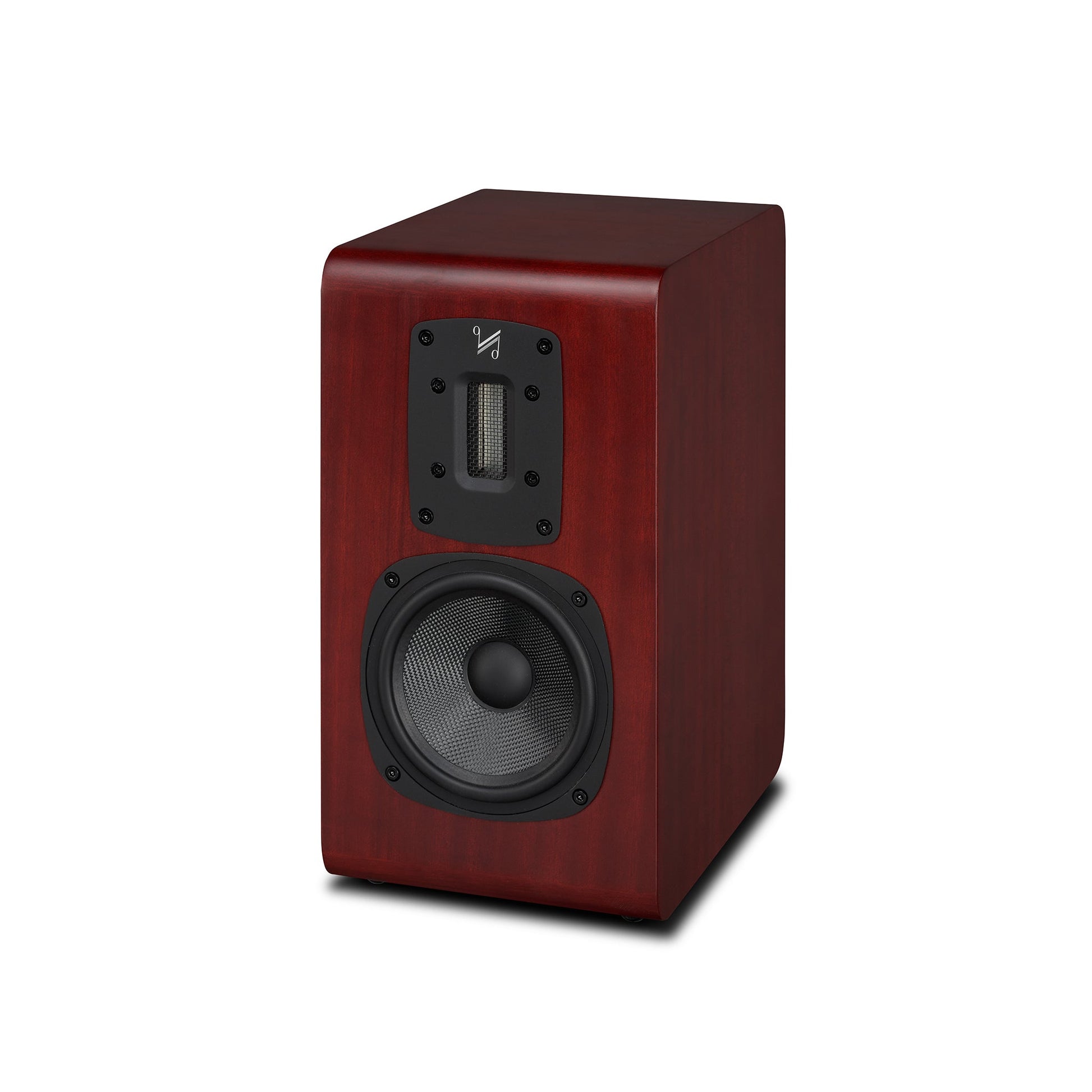

Ribbon Bookshelf Speaker

QUAD has always prided itself as providing the complete solution to music lovers. Each QUAD component marries perfectly to other parts of the hi-fi system and is designed with one target – to be ‘The Closest Approach To The Original Sound’.

QUAD S Series loudspeakers fulfil that objective admirably. Sporting a new ribbon treble unit aligned, through sophisticated crossover networks, to QUAD ’s advanced bass-midrange drivers, each and every loudspeaker in the range delivers all the nuances and passion of the original performance.

Color
View full details
  • Overview
  • Specifications
  • Downloads
  • Reviews
  • Related Products

Specifications

Model S-2
General Description bookshelf

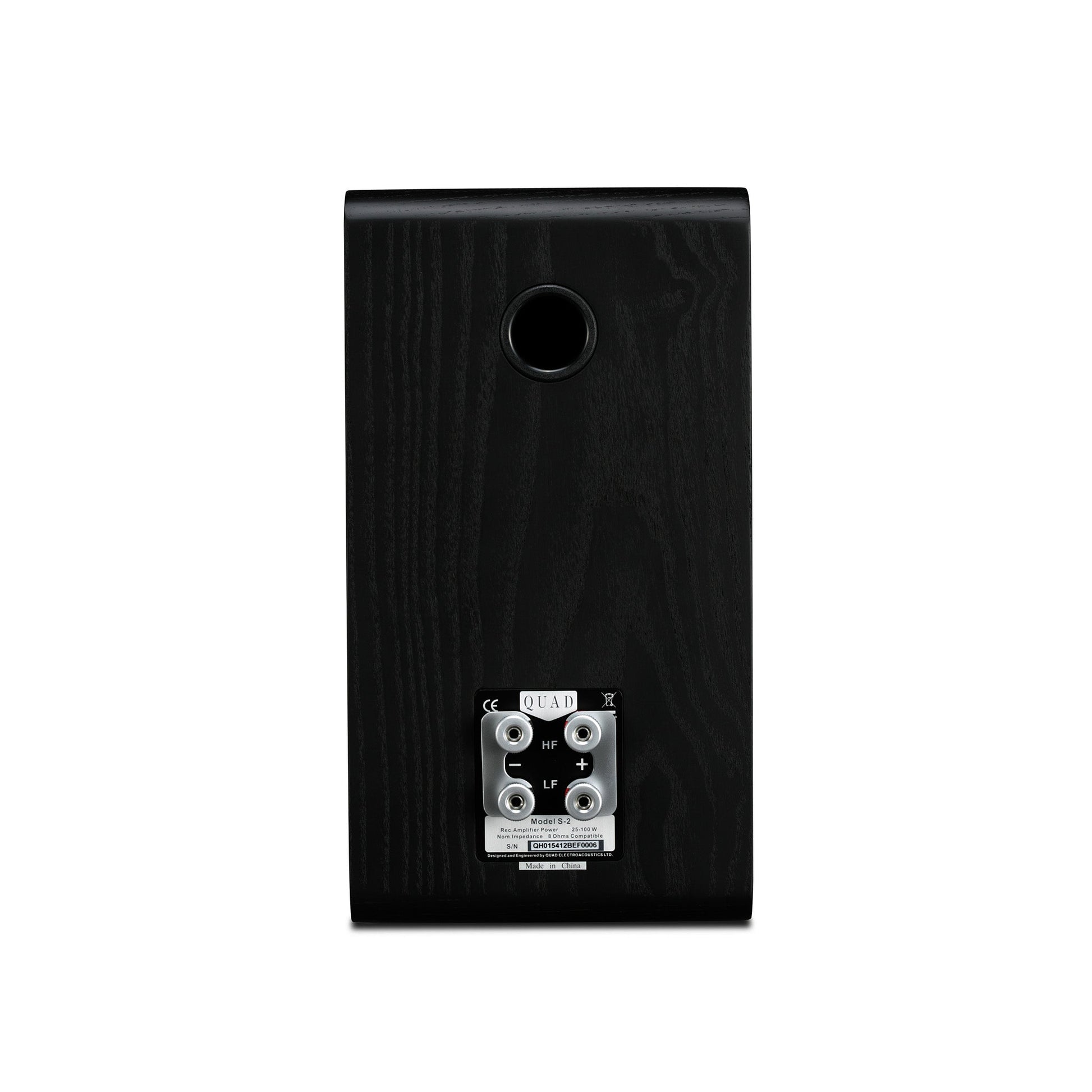

Enclosure type vented box
Transducer complement 2-way
Midrange driver 125mm Woven Kevlar®
Treble driver 45 x 12mm true ribbon
Sensitivity (1W @ 1m) 87dB
Recommended amplifier power 25-150W
Nominal impedance
Minimum impedance 4.5Ω
Frequency response (+/-3dB) 48Hz - 22kHz
Bass Extension (-6dB) 37Hz
Crossover frequency 3kHz
Cabinet Volume (in litres) 10.3L
Dimensions 330 x 180 x (260 + 30)mm
Net weight 6.1kg each
