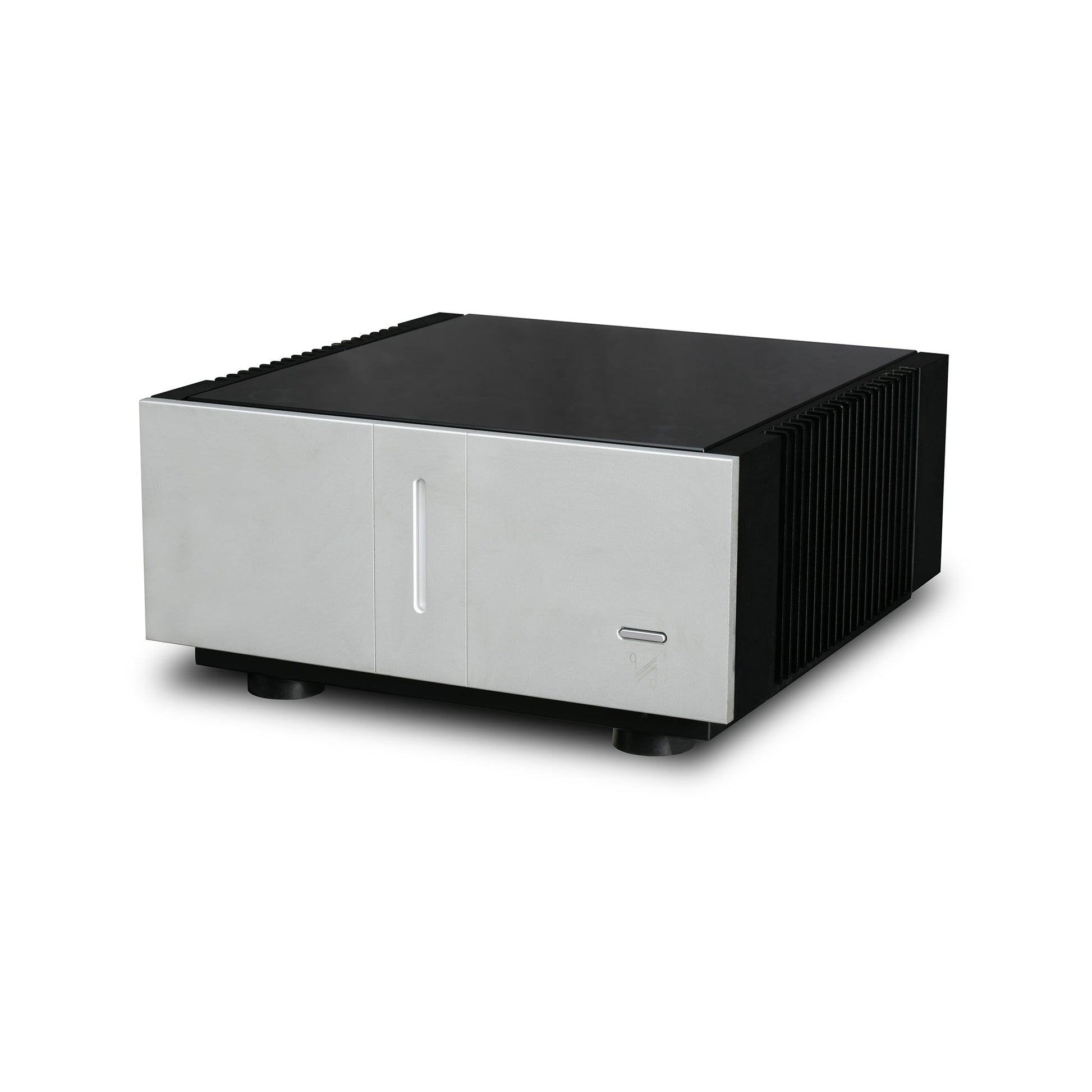

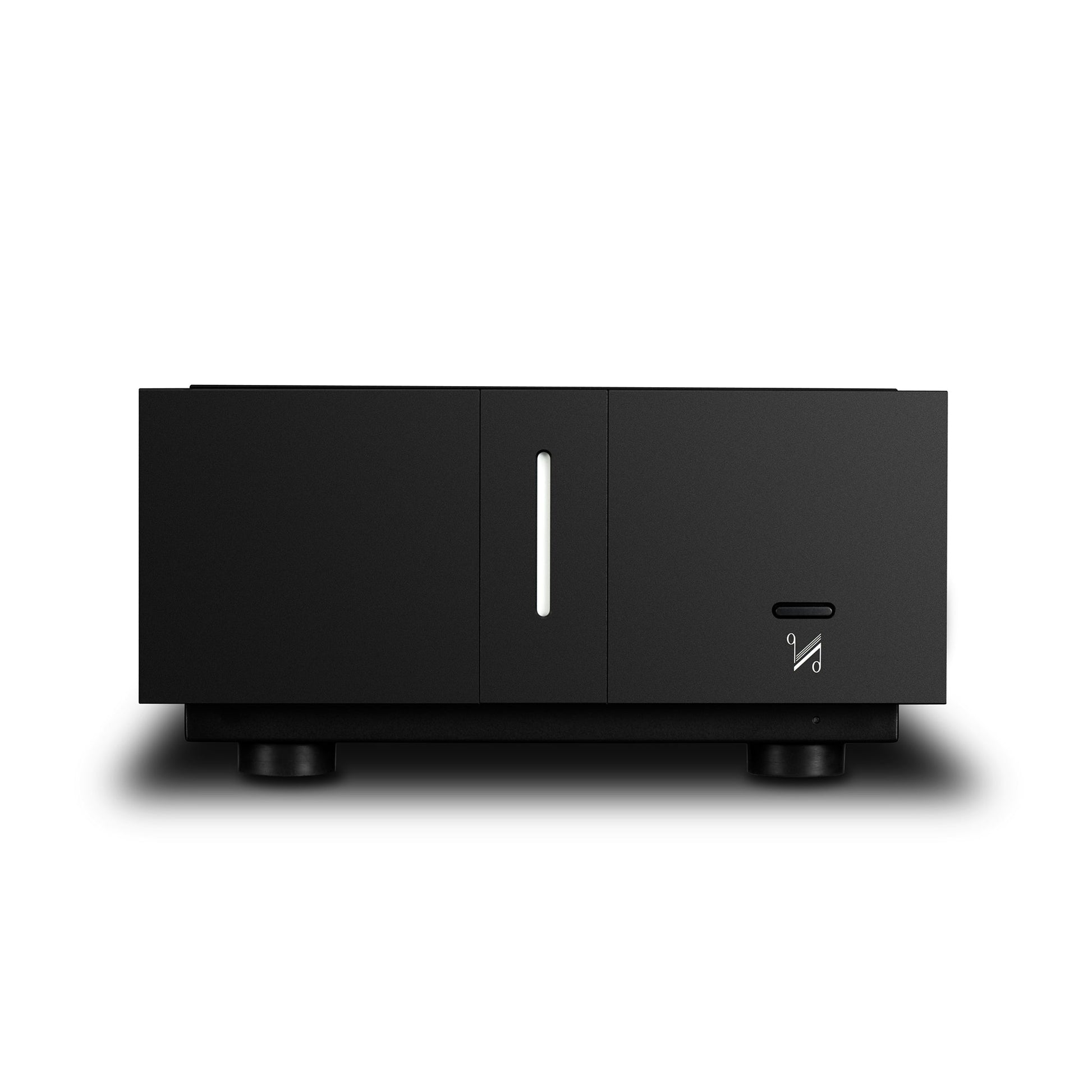

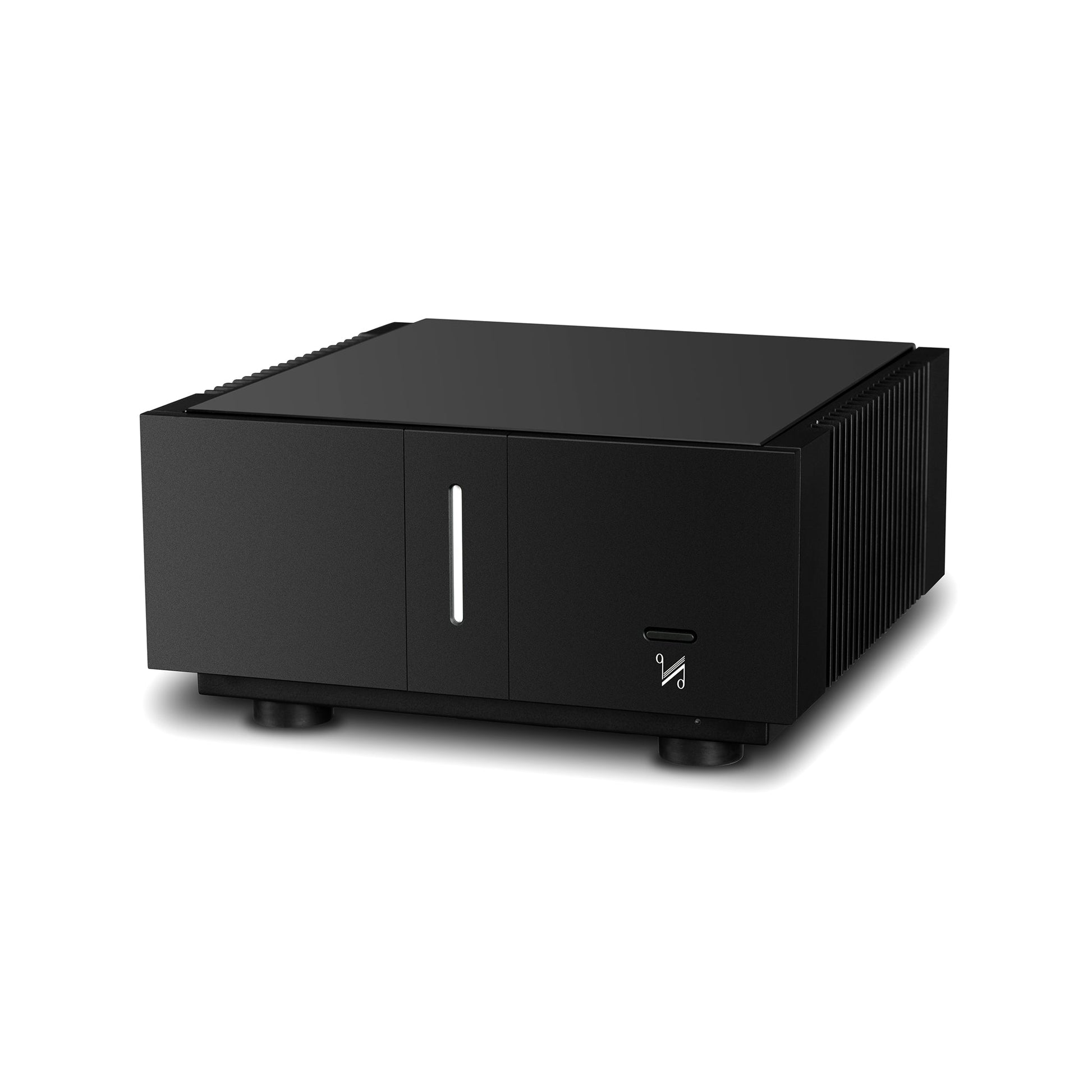

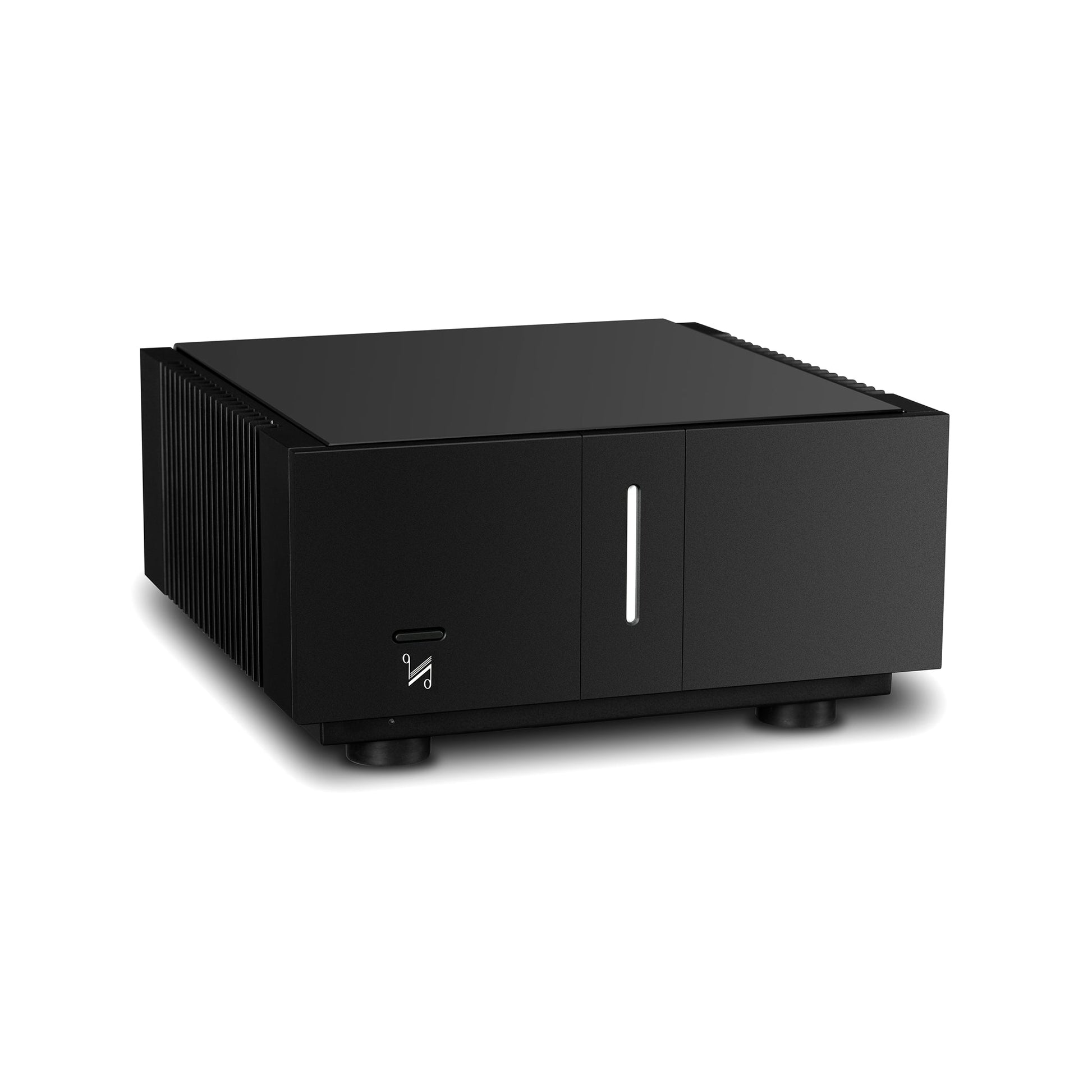

Artera Stereo

Name: Artera Stereo
Brand: QUAD
Availability: InStock

Power Amplifier

From the transformer to the input terminals, each section of the Artera has been engineered from the ground up to ensure power, musicality and stability. The Artera Stereo produces 140 Watts RMS per channel – ample power for driving first-class loudspeakers, unfaltering even under high dynamic and transient conditions thanks to the patented Current Dumping technology. Special attention has also been paid to the newly developed balanced XLR inputs. The robust connections are yet another string to the Artera Stereo’s bow, with an incomparable signal to noise ratio.

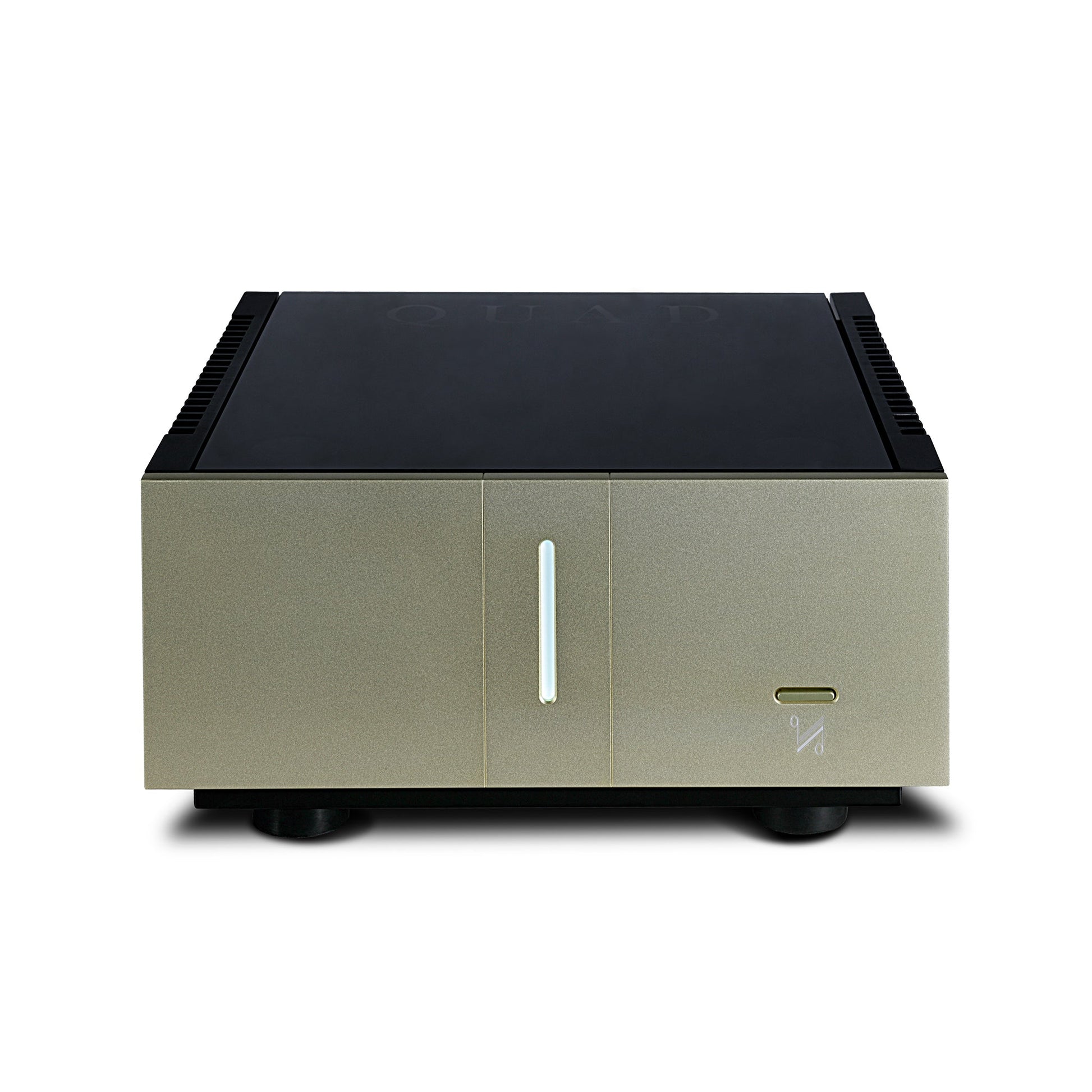

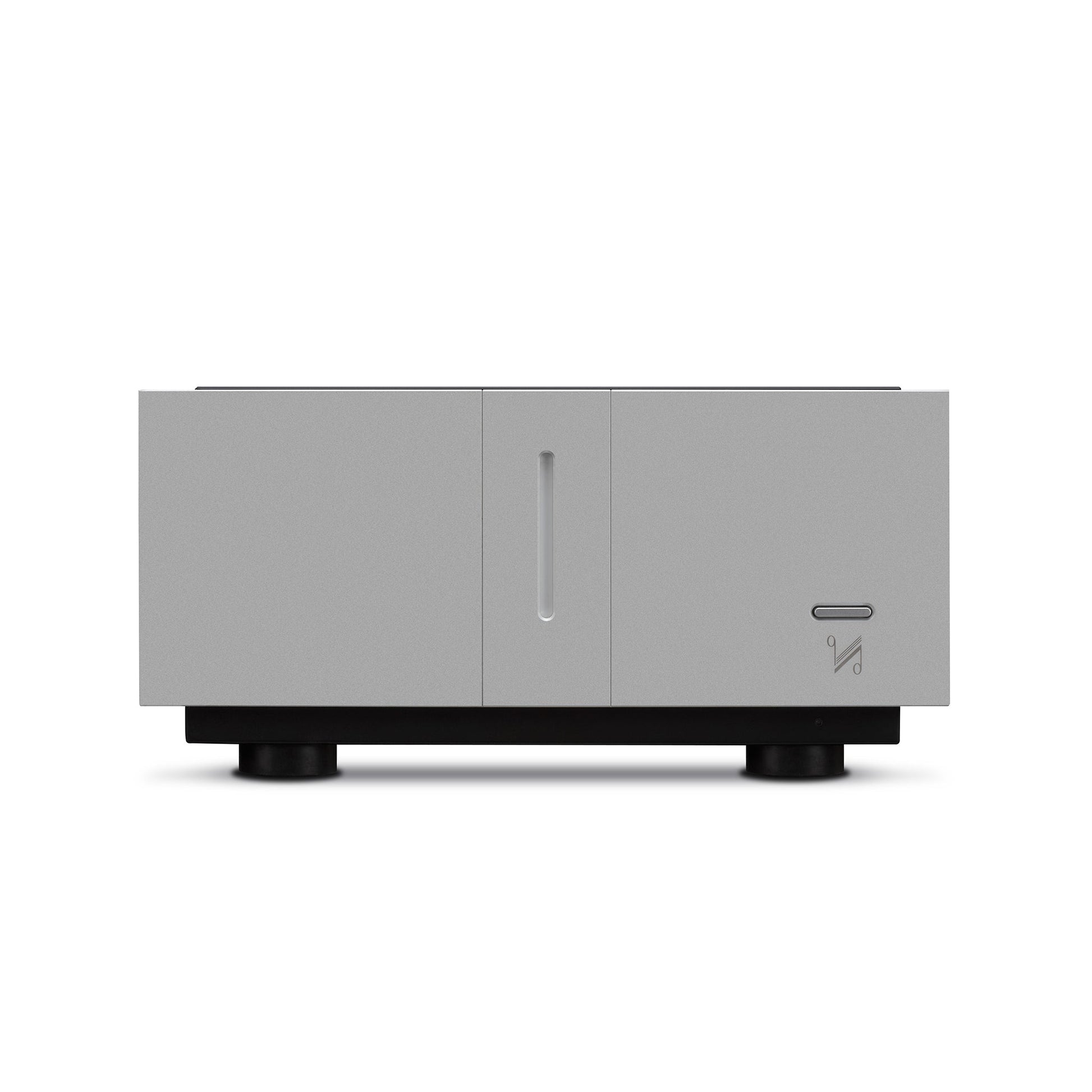

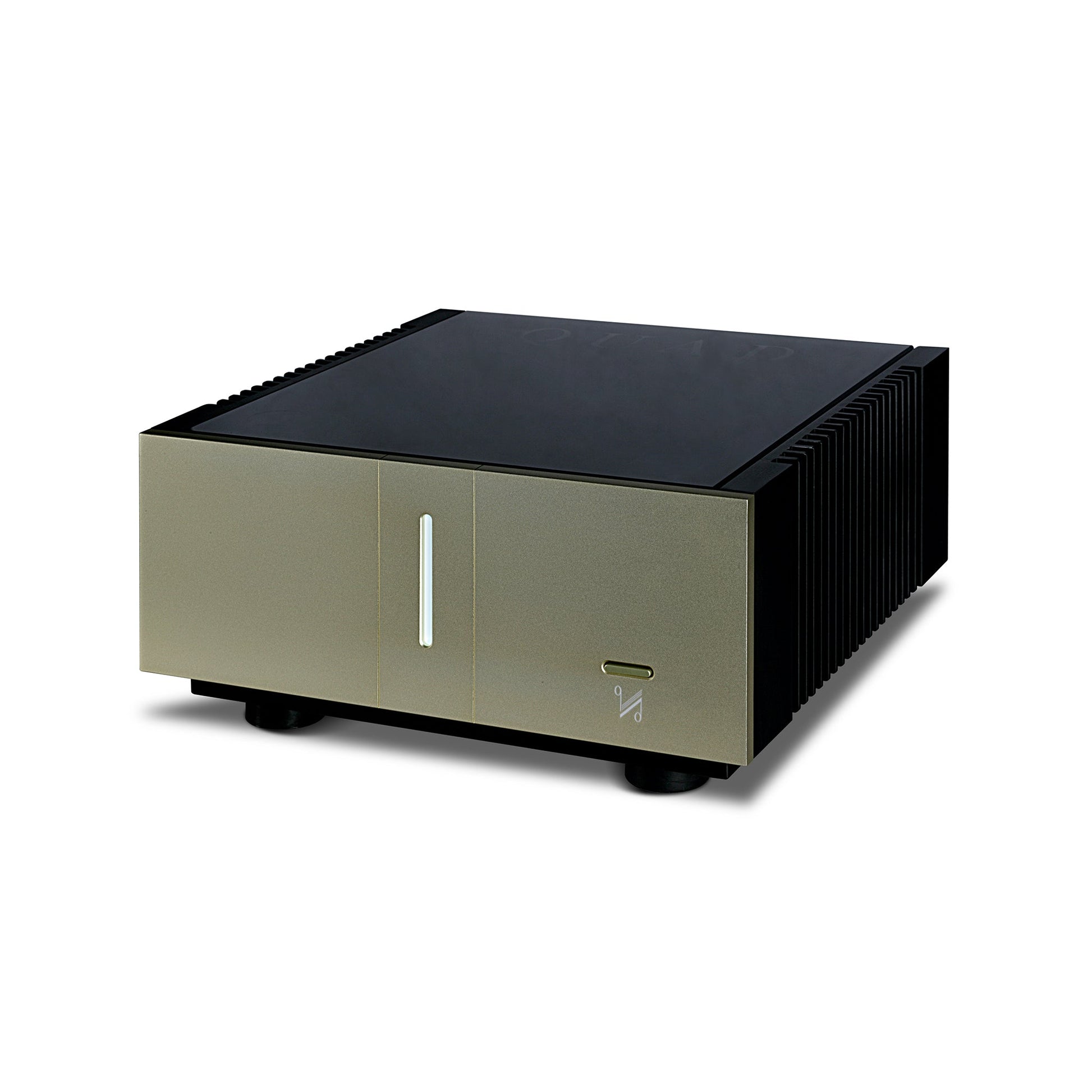

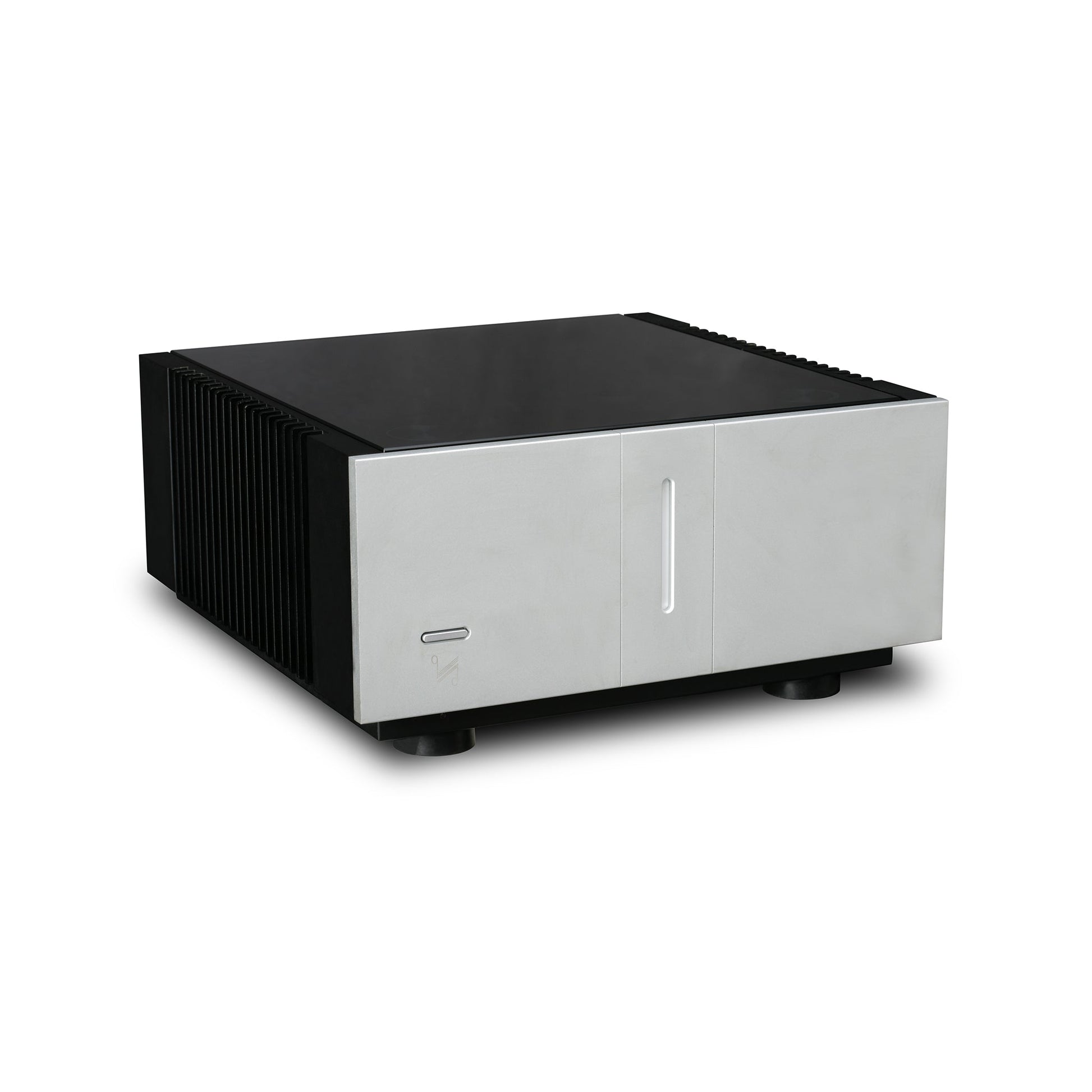

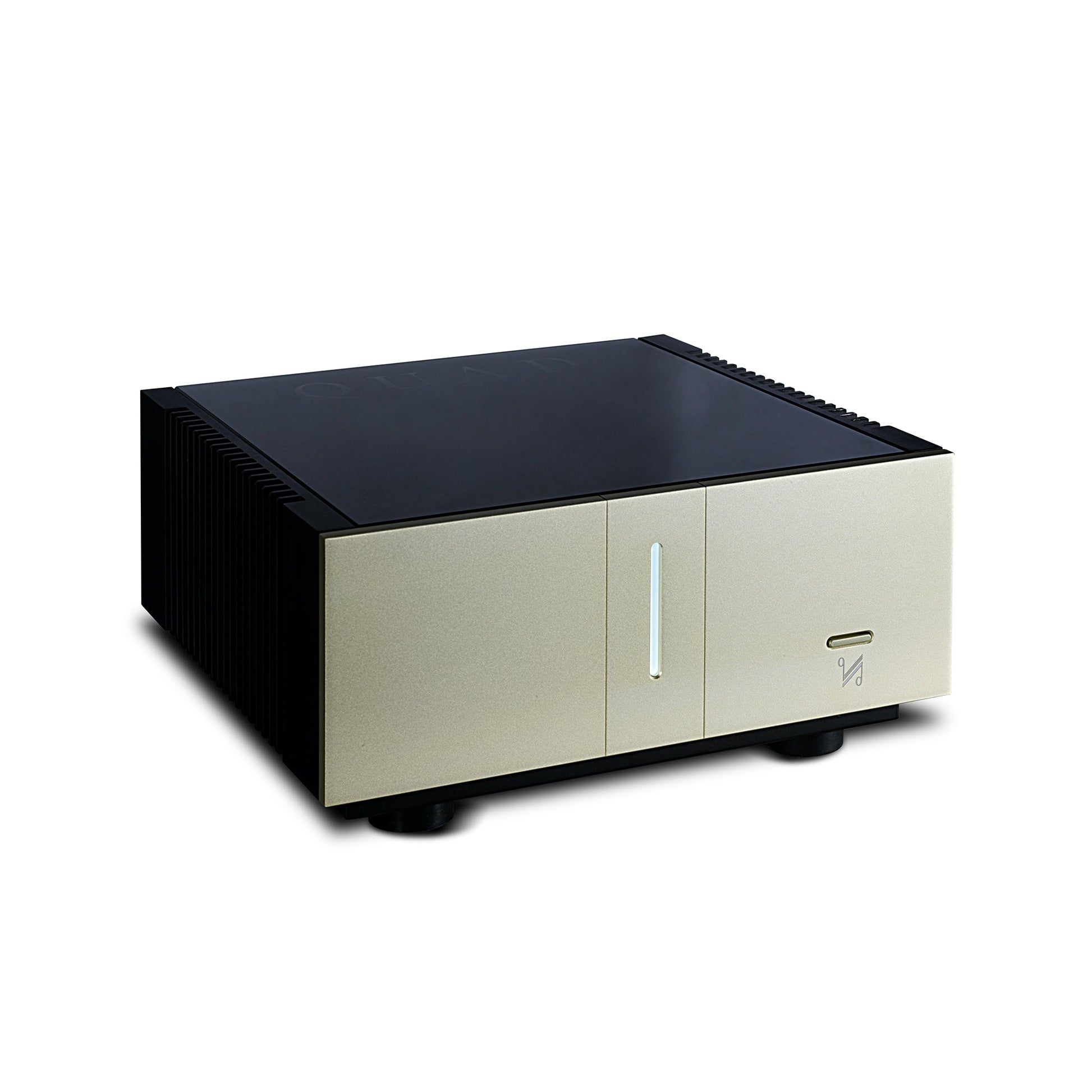

Color Aluminium Black Aluminium Silver Classique Gold

Product variants

View full details

Overview
Specifications
Downloads
Reviews
Related Products

This compact yet potent power amp sports the latest iteration of QUAD’s famous Current Dumping topology, first introduced in the legendary QUAD 405 – one of the most lauded British audio components of all time and still the only amp design to have earned a Queen’s Award for Technological Achievement.

Current Dumping is essentially a method of marrying the superior sonic purity of Class A amplification with the greater efficiency of Class AB. An extremely high-quality, low-power Class A amplifier provides the signal quality, while a high-power current dumping section delivers the muscle to keep the speakers under control. These two amp circuits are combined via a precision network to perfectly impose the finesse of the Class A output onto the power of the current dumper. The result is a relatively compact and cool-running power amp capable of delivering a captivating combination of dynamic power, vice-like grip and sumptuous sonic detail.

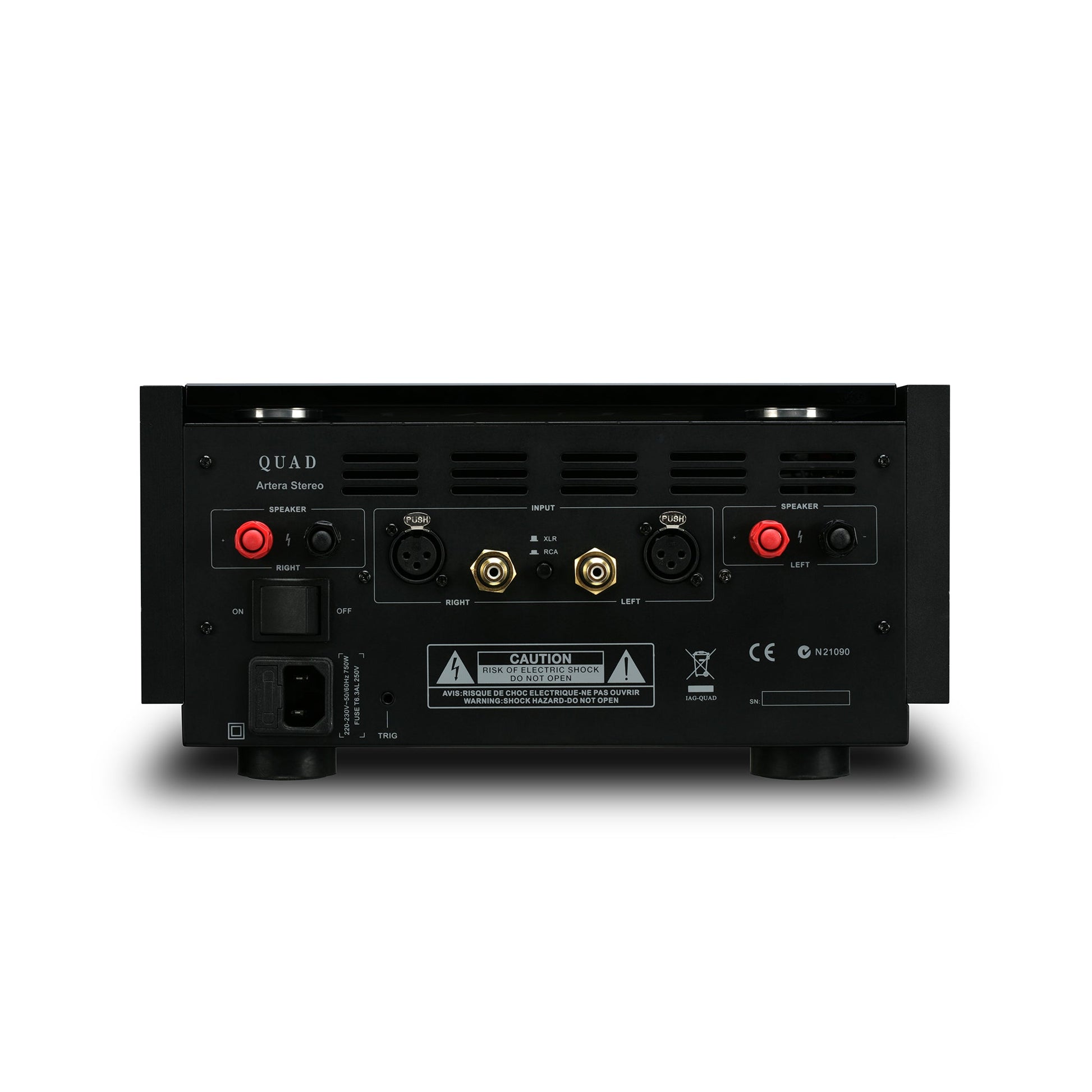

The Artera Stereo’s power output is conservatively rated at 140W per channel into eight ohms and 250W into four ohms, ensuring any speakers – including QUAD’s classic ESL electrostatic designs – can be driven with ease. Connectivity options comprise single-ended RCA and balanced XLR inputs, a 12V trigger input and high-quality speaker binding posts. Simple, solid and classy on the outside and devilishly clever within, the Artera Stereo maintains QUAD’s traditional place at the forefront of modern amplifier design

Specifications

Model	Artera Stereo
General Description	Power Amplifier
Rated Output Power	140W 8 ohm (<1% THD,1kHz)
Total Harmonic Distortion	<0.003% (100W, 1kHz)
	<0.03% (100W, 20Hz-20kHz)
Frequency Response	-0.5dB (20Hz-20kHz, ref. 1kHz)
	-3dB (20Hz-70kHz, ref. 1kHz)
Input Sensitivity	980mV(RCA line in)
Input Impedance	10kohm (Balanced)
	15kohm (Unbalanced)
Signal to Noise Ration(S/N)	115dB (A weighted, ref. 140W)
Maximum Power Consumption	750W
Inputs	2 x XLR, RCA
Outputs	Speaker A+B
Standby Power Consumption	<0.5W
Dimensions (W x H x D)	320 x 158 x 338mm
Weight	15kg
